Komatsu

D60P-7

Crawler Dozer

Operating Weight
386,911 lb
Max Speed - Forward
6.9 mph
Gross Power
160.0 hp
All crawler dozers

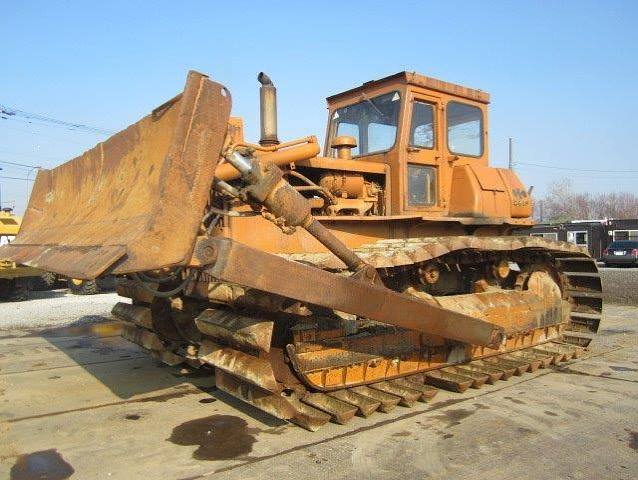

Komatsu D60P-7 Crawler Dozer
1 / 5
Image 1 of 5
Image: hmr.ph

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight386,911 lb
Fuel Capacity84.6 gal
Cooling System Fluid Capacity14.6 gal

Engine

Engine specifications
Engine ModelNH220-CI
Displacement743 in³
Power Measured @1,850 rpm
Gross Power160.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab121 in
Length of Track on Ground125 in
Width Over Tracks119 in
Length w/ Blade221 in
Length w/o Blade170 in

Transmission

Transmission specifications
Max Speed - Forward6.9 mph
Max Speed - Reverse6.1 mph
Transmission TypeK-C
Number of Forward Gears5
Number of Reverse Gears4

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge81 in
Number of Track Rollers per Side7
Number of Shoes per Side44
Number of Carrier Rollers per Side2
Standard Shoe Size38 in
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width157 in
Height41 in
