KomatsuKomatsu
D475A-5E0
Crawler Dozer
9 specifications
1 / 5

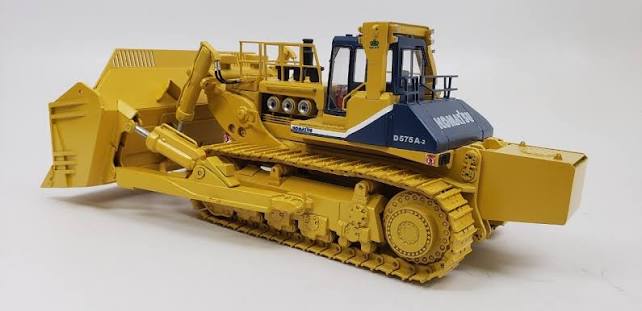

Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 284,837 lb |
|---|---|
| Fuel Capacity | 554.7 gal |
| Cooling System Fluid Capacity | 84.6 gal |
| Final Drives Fluid Capacity | 18.5 gal |
| Engine Oil Capacity | 34.1 gal |
| Hydraulic Fluid Capacity | 79.3 gal |
Engine
| Engine Model | SA12V170 |
|---|---|
| Displacement | 2,825 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 1,065.0 hp |
| Number of Cylinders | 12 |
| Aspiration | Turbocharged and emission certified diesel |
Hydraulic System
| Pump Flow Capacity | 67.4 gal/min |
|---|---|
| Relief Valve Pressure | 2,988 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 30 in |
|---|---|
| Height - Top of Cab | 193 in |
| Length of Track on Ground | 179 in |
| Width Over Tracks | 166 in |
| Length w/ Blade | 473 in |
| Length w/o Blade | 287 in |
Transmission
| Max Speed - Forward | 7.5 mph |
|---|---|
| Max Speed - Reverse | 8.6 mph |
| Transmission Type | TF |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 23 psi |
|---|---|
| Track Gauge | 127 in |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
| Standard Shoe Size | 30 in |
| Ground Contact Area | 10,673 in³ |
Standard Blade
| Width | 231 in |
|---|---|
| Height | 108 in |
