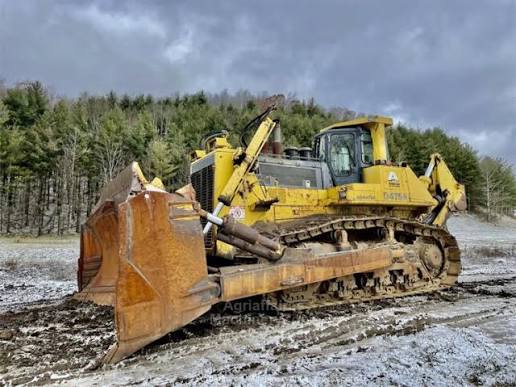

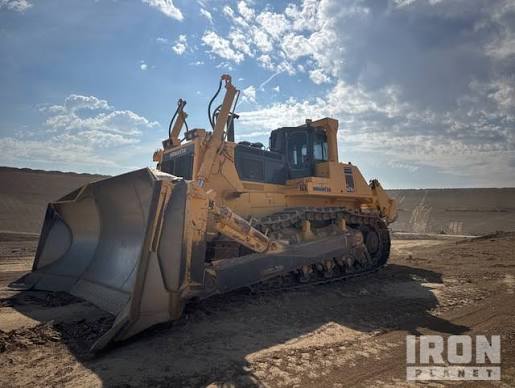

KomatsuKomatsu
D475A-5E0
Crawler Dozer
9 specifications
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 220,418 lb |
|---|---|
| Fuel Capacity | 441.2 gal |
| Cooling System Fluid Capacity | 78.0 gal |
| Final Drives Fluid Capacity | 19.9 gal |
| Engine Oil Capacity | 32.0 gal |
Engine
| Engine Model | SDA12V140 |
|---|---|
| Displacement | 1,860 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 872.0 hp |
| Number of Cylinders | 12 |
| Aspiration | Turbocharged |
Hydraulic System
| Pump Flow Capacity | 67.4 gal/min |
|---|---|
| Relief Valve Pressure | 2,988 psi |
| Pump Type | gear type |
Dimensions
| Height - Top of Cab | 180 in |
|---|---|
| Length of Track on Ground | 173 in |
| Width Over Tracks | 143 in |
| Length w/ Blade | 456 in |
Transmission
| Max Speed - Forward | 7.3 mph |
|---|---|
| Max Speed - Reverse | 9.0 mph |
| Transmission Type | TF |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 23 psi |
|---|---|
| Track Gauge | 109 in |
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 40 |
| Number of Carrier Rollers per Side | 2 |
| Standard Shoe Size | 28 in |
| Ground Contact Area | 9,607 in³ |
Standard Blade
| Width | 207 in |
|---|---|
| Height | 103 in |
| Capacity | 33.50 yd³ |
