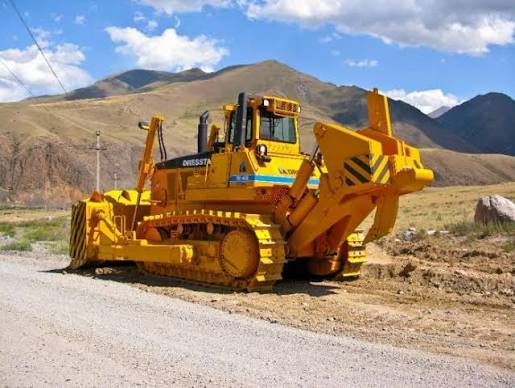

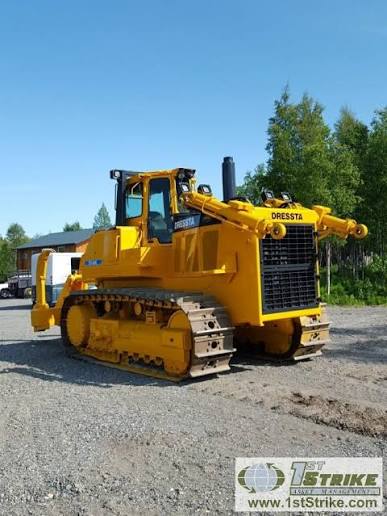

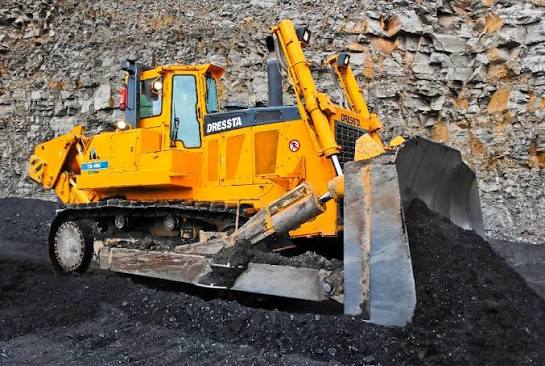

Dressta
TD-40E
- Operating Weight
- 146,915 lb
- Max Speed - Forward
- 7.7 mph
- Gross Power
- 545.0 hp
- Net Power
- 520.0 hp
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 146,915 lb |
|---|---|
| Fuel Capacity | 360.0 gal |
| Cooling System Fluid Capacity | 19.6 gal |
| Final Drives Fluid Capacity | 22.5 gal |
| Engine Oil Capacity | 19.6 gal |
| Hydraulic Fluid Capacity | 71.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | QSK19-C |
|---|---|
| Displacement | 1,150 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 545.0 hp |
| Net Power | 520.0 hp |
| Number of Cylinders | 6 |
| Aspiration | 4-cycle diesel turbocharged CAC direct start direct injection |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 104.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,400 psi |
| Pump Type | Hydraulic pupms driven from torque converter |
Dimensions
| Ground Clearance | 39 in |
|---|---|
| Height - Top of Cab | 167 in |
| Width Over Tracks | 148 in |
| Length w/o Blade | 227 in |
Transmission
| Max Speed - Forward | 7.7 mph |
|---|---|
| Max Speed - Reverse | 9.6 mph |
| Transmission Type | Modular countershaft type powershift transmission. |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 19 psi |
|---|---|
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 39 |
| Standard Shoe Size | 24 in |
| Ground Contact Area | 6,816 in³ |
Standard Blade
| Width | 190 in |
|---|---|
| Height | 7 in |
| Capacity | 24.30 yd³ |
