Caterpillar

D10T

Crawler Dozer

Operating Weight
146,500 lb
Max Speed - Forward
7.9 mph
Gross Power
661.0 hp
Net Power
580.0 hp
All crawler dozers

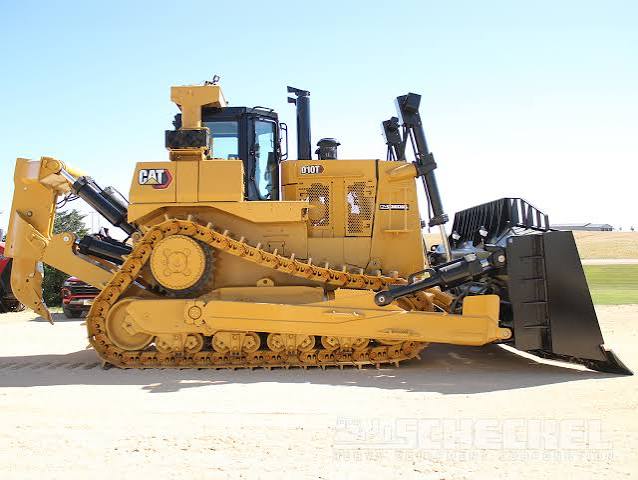

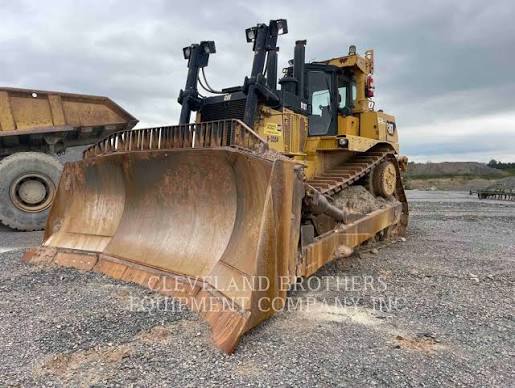

Caterpillar D10T Crawler Dozer
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight146,500 lb
Fuel Capacity318.0 gal
Cooling System Fluid Capacity34.9 gal
Final Drives Fluid Capacity6.0 gal
Engine Oil Capacity18.0 gal
Hydraulic Fluid Capacity38.0 gal
Operating Voltage24 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelCat C27 ACERT
Displacement1,648 in³
Power Measured @1,800 rpm
Gross Power661.0 hp
Net Power580.0 hp
Number of Cylinders12
AspirationTurbocharged
MakeCat
Stroke6 in
Bore5 in
Flywheel Power580.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity107.0 gal/min
Relief Valve Pressure2,725 psi
Pump Typegear driven

Dimensions

Dimensions specifications
Ground Clearance26 in
Height - Top of Cab161 in
Length of Track on Ground152 in
Width Over Tracks125 in
Length w/ Blade365 in
Length w/o Blade210 in

Transmission

Transmission specifications
Max Speed - Forward7.9 mph
Max Speed - Reverse9.8 mph
Transmission TypePower shift
Number of Forward Gears3
Number of Reverse Gears3
2 Forward4.5 mph
3 Forward7.9 mph
2 Reverse5.6 mph
3 Reverse9.7 mph
1 Forward2.5 mph
1 Reverse3.2 mph

Undercarriage

Undercarriage specifications
Track Gauge101 in
Number of Track Rollers per Side8
Number of Shoes per Side44
Standard Shoe Size24 in
Ground Contact Area7,326 in³
Track Pitch10 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank318.0 gal

Standard Blade

Standard Blade specifications
Width191 in
Height81 in
Capacity63.89 yd³

Standards

Standards specifications
FOPSSAE J/ISO 3449 APR98 Level II ISO 3449:1992 Level II
ROPSSAE J1040 MAY94 ISO 3471:1994
