Komatsu

D60P-8

Crawler Dozer

Operating Weight
38,691 lb
Gross Power
165.0 hp
All crawler dozers

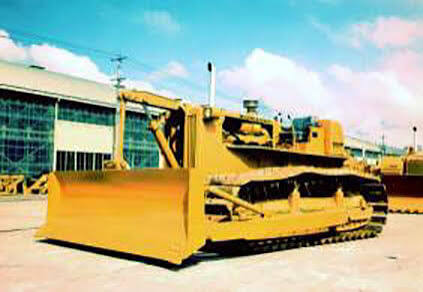

Komatsu D60P-8 Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,691 lb

Engine

Engine specifications
Engine Model6D125-1
Displacement674 in³
Power Measured @1,850 rpm
Gross Power165.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab121 in
Length of Track on Ground125 in
Width Over Tracks119 in
Length w/ Blade221 in
Length w/o Blade170 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears5
Number of Reverse Gears4

Undercarriage

Undercarriage specifications
Track Gauge81 in
Number of Track Rollers per Side7
Number of Shoes per Side44
Number of Carrier Rollers per Side2
Standard Shoe Size38 in
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width157 in
Height41 in
