KomatsuKomatsu
D87E-3
Crawler Dozer
41 specifications

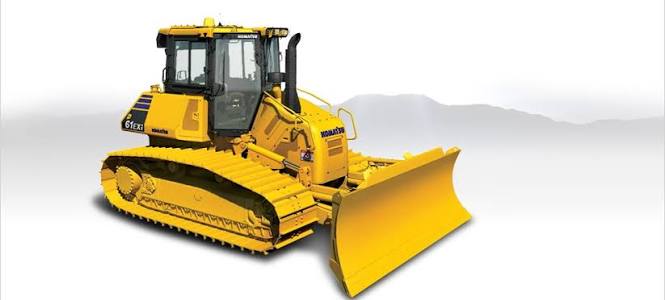

Komatsu
D61Ex-23
- Operating Weight
- 41,138 lb
- Max Speed - Forward
- 5.6 mph
- Gross Power
- 169.0 hp
- Net Power
- 168.0 hp
1 / 5
Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight | 41,138 lb |
|---|---|
| Fuel Capacity | 98.3 gal |
| Engine Oil Capacity | 7.2 gal |
Engine
| Engine Model | SAA6D107E-2 |
|---|---|
| Displacement | 408 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 169.0 hp |
| Net Power | 168.0 hp |
| Make | Komatsu |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 126 in |
| Width Over Tracks | 128 in |
| Length w/o Blade | 216 in |
Transmission
| Max Speed - Forward | 5.6 mph |
|---|---|
| Max Speed - Reverse | 5.6 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Number of Track Rollers per Side | 8 |
|---|---|
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 2 |
| Standard Shoe Size | 34 in |
