Komatsu

D65A-6

Crawler Dozer

Operating Weight
34,679 lb
Max Speed - Forward
6.5 mph
Gross Power
140.0 hp
All crawler dozers

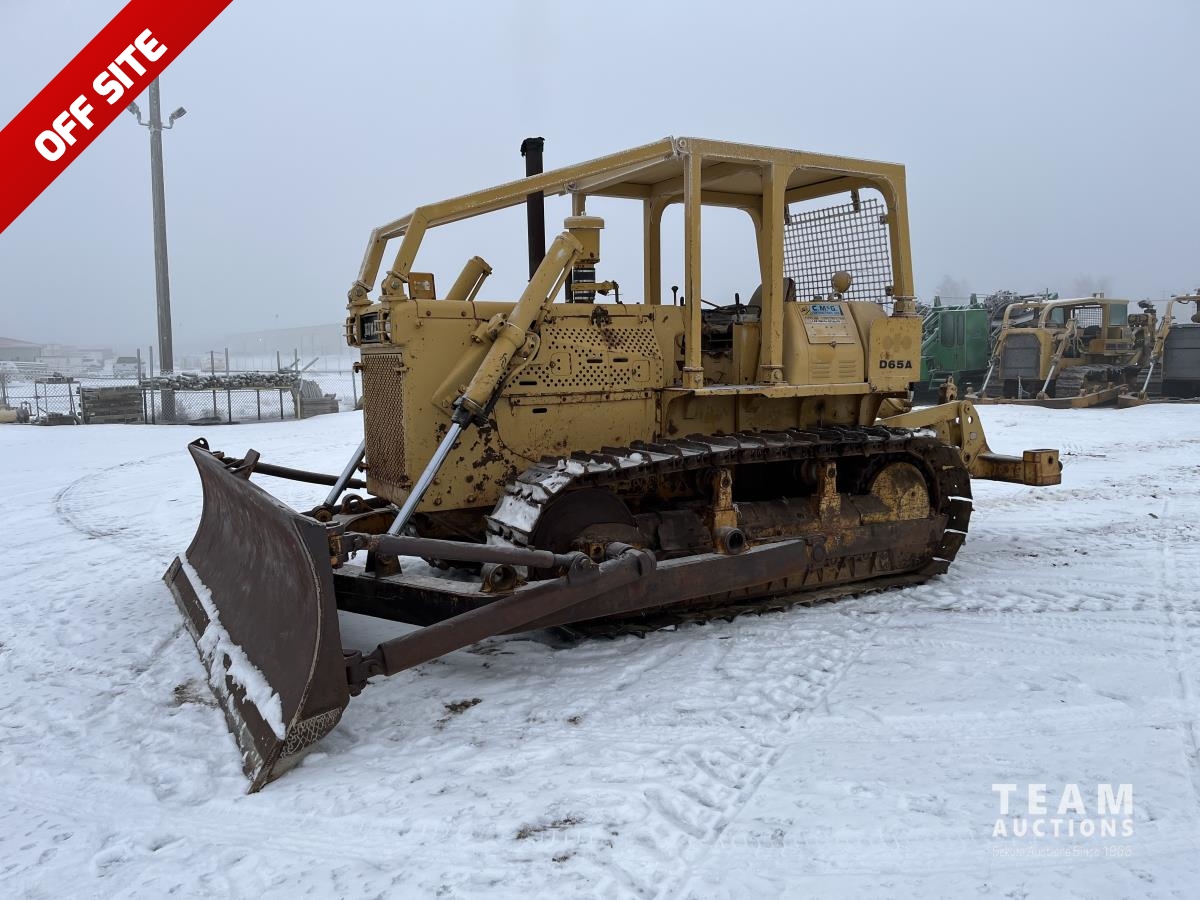

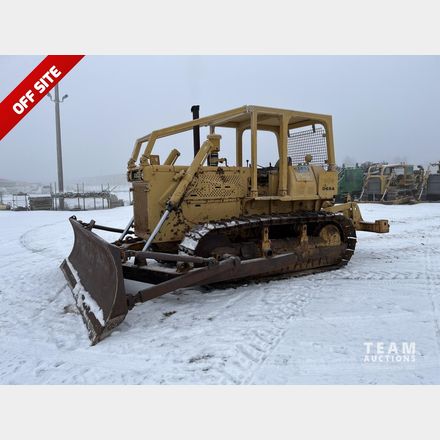

Komatsu D65A-6 Crawler Dozer
1 / 5
Image 1 of 5
Image: internet-bidding.teamauctions.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,679 lb
Fuel Capacity74.0 gal
Cooling System Fluid Capacity14.6 gal

Engine

Engine specifications
Engine ModelNH220-CI
Displacement743 in³
Power Measured @1,850 rpm
Gross Power140.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab119 in
Length of Track on Ground96 in
Width Over Tracks95 in
Length w/ Blade203 in
Length w/o Blade165 in

Transmission

Transmission specifications
Max Speed - Forward6.5 mph
Max Speed - Reverse8.3 mph
Transmission TypeK-C
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge74 in
Number of Track Rollers per Side6
Number of Shoes per Side37
Number of Carrier Rollers per Side2
Standard Shoe Size20 in
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width157 in
Height41 in
