Komatsu

D65A-8

Crawler Dozer

Operating Weight
35,693 lb
Gross Power
160.0 hp
All crawler dozers

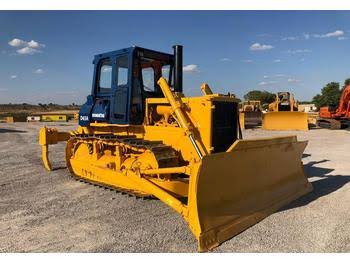

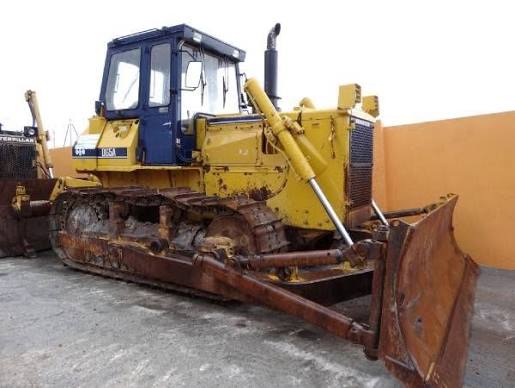

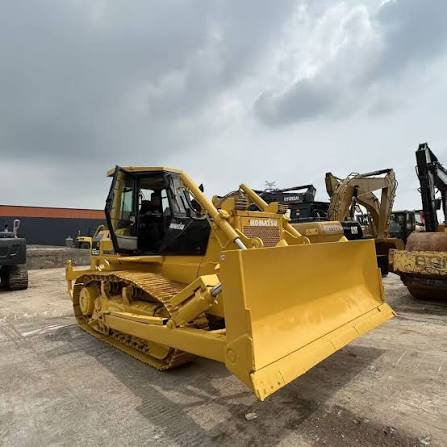

Komatsu D65A-8 Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight35,693 lb

Engine

Engine specifications
Engine Model6D125-1
Displacement674 in³
Power Measured @1,850 rpm
Gross Power160.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab119 in
Length of Track on Ground96 in
Width Over Tracks95 in
Length w/ Blade204 in
Length w/o Blade161 in

Transmission

Transmission specifications
Transmission TypeTF
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge74 in
Number of Track Rollers per Side6
Number of Shoes per Side37
Number of Carrier Rollers per Side2
Standard Shoe Size20 in
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width157 in
Height41 in
