Komatsu

D65EX-12E

Crawler Dozer

Operating Weight
41,667 lb
Gross Power
190.0 hp
All crawler dozers

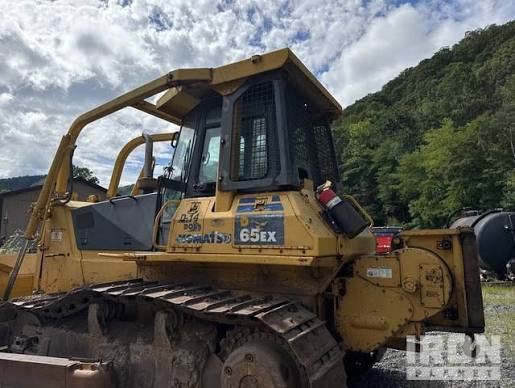

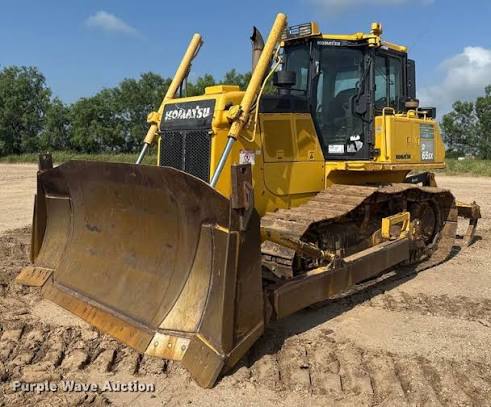

Komatsu D65EX-12E Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight41,667 lb

Engine

Engine specifications
Engine ModelS6D125E-2-A
Displacement75 in³
Power Measured @1,950 rpm
Gross Power190.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab121 in
Length of Track on Ground106 in
Width Over Tracks95 in
Length w/ Blade207 in
Length w/o Blade173 in

Transmission

Transmission specifications
Transmission TypeTFHSS
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge74 in
Number of Track Rollers per Side7
Number of Shoes per Side39
Number of Carrier Rollers per Side2
Standard Shoe Size20 in
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width135 in
Height48 in
