Komatsu

D65P-6

Crawler Dozer

Operating Weight
39,220 lb
Gross Power
155.0 hp
All crawler dozers

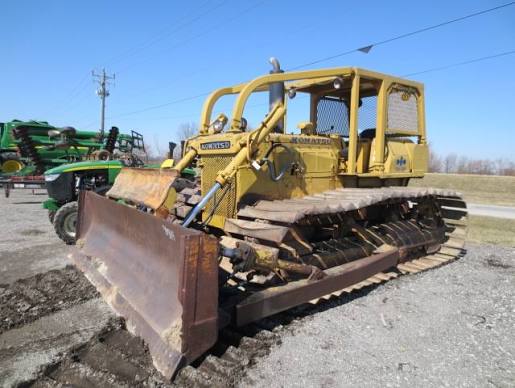

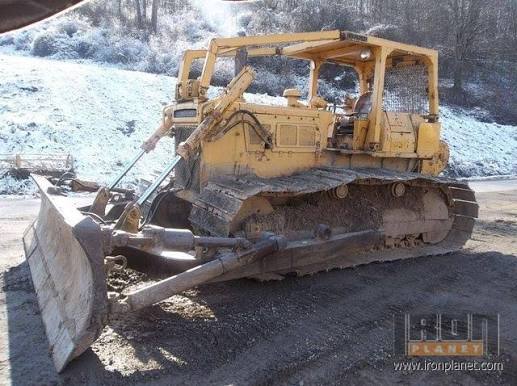

Komatsu D65P-6 Crawler Dozer
1 / 5
Image 1 of 5
Image: psauction.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight39,220 lb

Engine

Engine specifications
Engine ModelNH220-C1
Displacement743 in³
Power Measured @1,850 rpm
Gross Power155.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab121 in
Length of Track on Ground125 in
Width Over Tracks119 in
Length w/ Blade221 in
Length w/o Blade170 in

Transmission

Transmission specifications
Transmission TypeTF
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge81 in
Number of Track Rollers per Side7
Number of Shoes per Side44
Number of Carrier Rollers per Side2
Standard Shoe Size38 in
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width157 in
Height41 in
