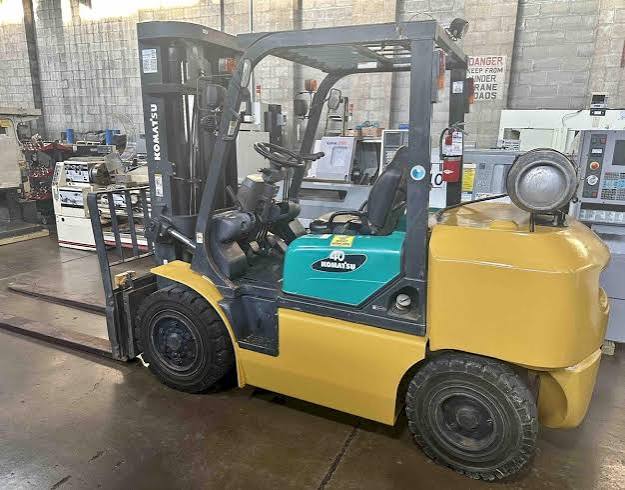

Komatsu
Hyster
S40FT
Forklift
37 specifications
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 12,853 lb |
|---|---|
| Max Speed | 7.4 mph |
| Tire Type | Pneumatic |
Engine
| Engine Model | TB45E |
|---|---|
| Displacement | 273 in³ |
| Power Measured @ | 2,400 rpm |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,600 rpm |
| Power | 95.0 hp |
| Fuel Type | Gasoline |
| Torque | 203 lb-ft |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Wheelbase | 73 in |
| Overall Width | 53 in |
| Turning Radius | 101 in |
| Overall Height - mast lowered | 94 in |
| Length to Fork Face | 117 in |
| Height to Top of Overhead Guard | 86 in |
| Max Fork Height | 132 in |
| Right Angle Stack | 121 in |
Mast
| Load Capacity | 8,003 lb |
|---|---|
| Load Center | 20 in |
| Lift Speed | 1.3 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 12 ° |
| Lower Speed | 1.2 mph |
