Komatsu

GD200A-1

Motor Grader

Max Power
65.0 hp
Net Power Gear 5-6
65.0 hp
All motor graders

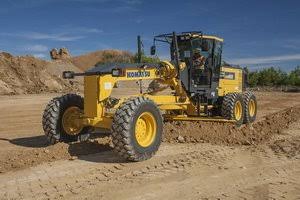

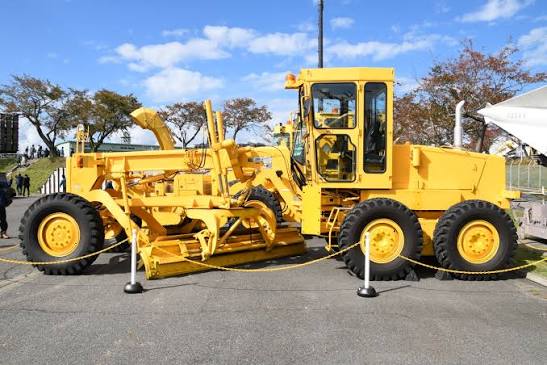

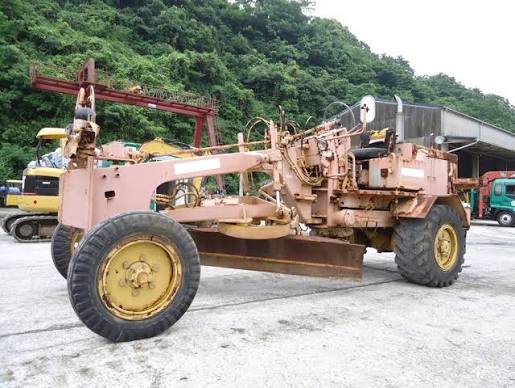

Komatsu GD200A-1 Motor Grader
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total11,244 lb
Tire Sizefront 7.50-20-10PR rear 42x17-20-10PR
Std Operation Weight - Front Axle3,076 lb
Std Operation Weight - Rear Axle8,168 lb

Engine

Engine specifications
Engine Model4D105-5
Displacement264 in³
Max Power65.0 hp
Net Power Gear 5-665.0 hp
Net Torque Gears 5-6174 lb-ft

Dimensions

Dimensions specifications
Wheelbase143 in
Overall Length219 in
Height to Top of Isomount Cab108 in
Blade Base54 in
Front Ground Clearance19 in
Rear Ground Clearance12 in

Transmission

Transmission specifications
Max Speed - Forward19.4 mph
Max Speed - Reverse17.9 mph
Number of Gears - Forward5
Number of Gears - Reverse5

Moldboard

Moldboard specifications
Moldboard Height19 in
Moldboard Width88 in
Moldboard Thickness0 in
Max Depth of Cut8 in

Circle

Circle specifications
Max Lift Above Ground11 in
Max Reach Outside Tires - Left23 in
Max Reach Outside Tires - Right20 in

Front Axle

Front Axle specifications
Oscillation - Total26 °
Ground Clearance18 in

Steering System

Steering System specifications
Turning Radius178 in
Articulation Angle30 °
