Volvo

G60

Motor Grader

Max Power
85.0 hp
Net Power Gears 7-8
85.0 hp
All motor graders

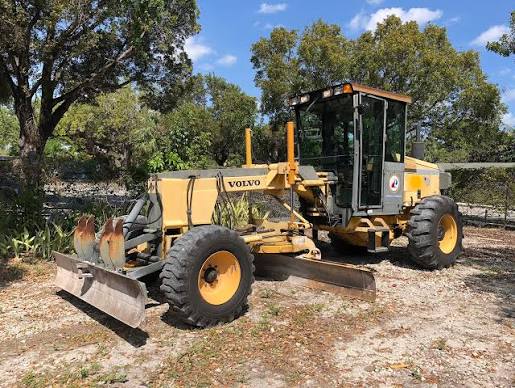

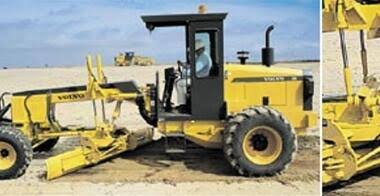

Volvo G60 Motor Grader
1 / 5
Image 1 of 5
Image: dir.indiamart.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total12,809 lb
Fuel Capacity39.1 gal
Std Operation Weight - Front Axle3,880 lb
Std Operation Weight - Rear Axle8,929 lb
Hydraulic System Fluid Capacity30.2 gal
Cooling System Fluid Capacity4.5 gal
Rear Diff/Final Drive Fluid Capacity4.5 gal

Engine

Engine specifications
Engine Model4B3.9
Displacement239 in³
Power Measured @2,500 rpm
Max Power85.0 hp
Net Power Gears 7-885.0 hp
Net Power Gear 1-285.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow16.2 gal/min
Pump Typesingle flow
Relief Valve Pressure1,800 psi

Dimensions

Dimensions specifications
Wheelbase185 in
Overall Length251 in
Width Over Tires86 in
Height to Top of Isomount Cab115 in
Blade Base74 in

Transmission

Transmission specifications
Max Speed - Forward10.0 mph
Max Speed - Reverse20.0 mph
Transmission Typehydrostatic

Moldboard

Moldboard specifications
Moldboard Height19 in
Moldboard Width120 in
Moldboard Thickness1 in
Side Shift Left46 in
Side Shift Right46 in
Max Depth of Cut10 in

Steering System

Steering System specifications
Turning Radius198 in
Articulation Angle37 °
