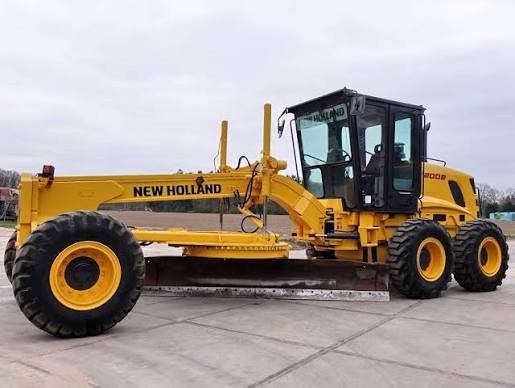

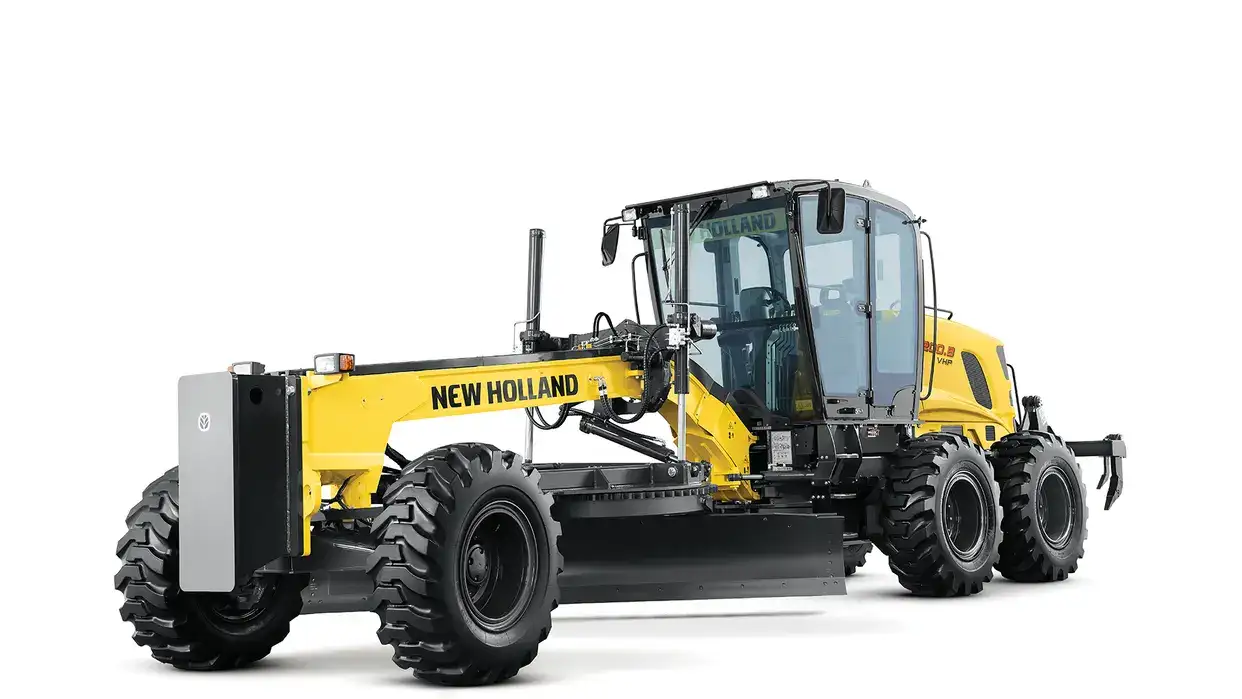

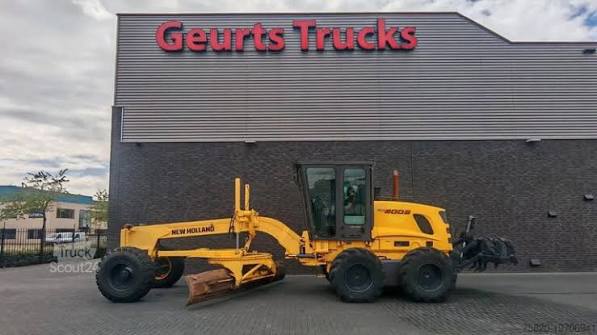

New HollandNew Holland
RG80
Motor Grader
39 specifications
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Max Operation Weight - Total | 37,950 lb |
|---|---|
| Max Operation Weight - Front Axle | 4,612 lb |
| Max Operation Weight - Rear Axle | 26,724 lb |
| Std Operation Weight - Total | 37,950 lb |
| Tire Size | fireston 14x24 10 ply |
| Fuel Capacity | 90.1 gal |
| Std Operation Weight - Front Axle | 11,226 lb |
| Std Operation Weight - Rear Axle | 26,724 lb |
| Hydraulic System Fluid Capacity | 47.6 gal |
| Tandem Case Fluid Capacity (each) | 6.0 gal |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 10.6 gal |
| Alternator Supplied Amperage | 100 A |
| Transmission Fluid Capacity | 7.6 gal |
| Circle Gearbox Fluid Capacity | 0.8 gal |
| Rear Diff/Final Drive Fluid Capacity | 3.2 gal |
Engine
| Engine Model | 6CT 8.3 |
|---|---|
| Displacement | 507 in³ |
| Aspiration | Turbocharged |
| Max Power | 200.0 hp |
| Net Power Gears 7-8 | 200.0 hp |
| Net Torque Gears 7-8 | 640 lb-ft |
Hydraulic System
| Pump Flow | 49.0 gal/min |
|---|---|
| Pump Type | variable displacement piston |
| Relief Valve Pressure | 2,800 psi |
Dimensions
| Wheelbase | 246 in |
|---|---|
| Overall Length | 337 in |
| Width Over Tires | 101 in |
| Height to Top of Isomount Cab | 125 in |
| Blade Base | 102 in |
| Tandem Axle Wheelbase | 64 in |
| Front Ground Clearance | 25 in |
| Rear Ground Clearance | 16 in |
Transmission
| Max Speed - Forward | 26.8 mph |
|---|---|
| Max Speed - Reverse | 19.1 mph |
| Number of Gears - Forward | 8 |
| Number of Gears - Reverse | 4 |
| Transmission Type | direct drive power shift |
Moldboard
| Moldboard Height | 25 in |
|---|---|
| Moldboard Width | 145 in |
| Moldboard Thickness | 1 in |
| Max Depth of Cut | 28 in |
| Blade Down Pressure | 23,955 lb |
Circle
| Max Lift Above Ground | 18 in |
|---|---|
| Max Reach Outside Tires - Left | 78 in |
| Max Reach Outside Tires - Right | 86 in |
| Diameter | 69 in |
| Blade Tip Angle - Front | 42 ° |
| Rotation | 360 ° |
| Blade Tip Angle - Rear | 90 ° |
| Shift Left | 21 in |
| Shift Right | 27 in |
Front Axle
| Wheel Lean | 18 ° |
|---|---|
| Oscillation - Total | 19 ° |
| Ground Clearance | 25 in |
Steering System
| Turning Radius | 286,969 in |
|---|---|
| Articulation Angle | 25 ° |
