New Holland

RG80

Motor Grader

Max Power
76.0 hp
All motor graders

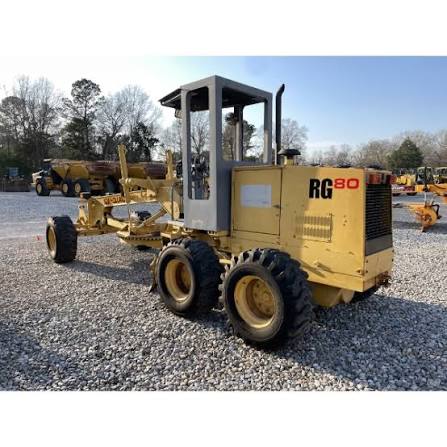

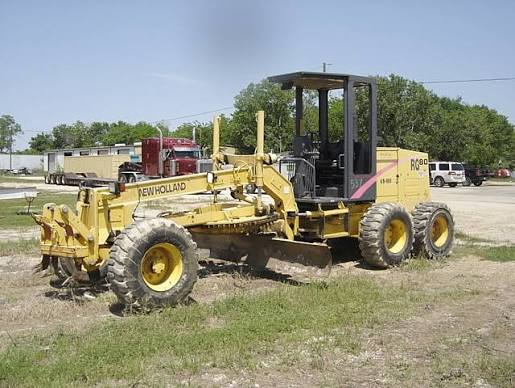

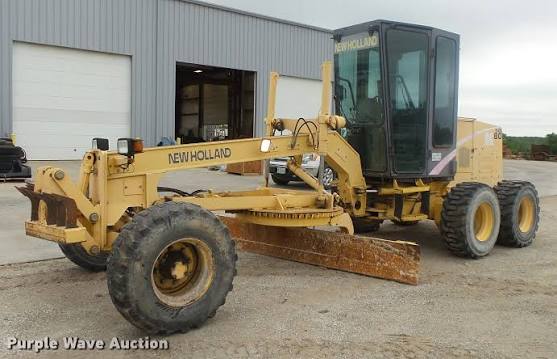

New Holland RG80 Motor Grader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total15,500 lb
Tire Size15.00*19.5 -8 PR (G2)
Std Operation Weight - Front Axle4,557 lb
Std Operation Weight - Rear Axle10,943 lb
Operating Voltage24 V
Alternator Supplied Amperage100 A

Engine

Engine specifications
Engine ModelGenesis 5.0
Displacement304 in³
Power Measured @2,200 rpm
Number of Cylinders4
Torque Measured @1,400 rpm
Stroke5 in
Bore5 in
Torque240 lb-ft
Max Power76.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow10.1 gal/min
Pump TypeBARNS gear pump
Relief Valve Pressure1,850 psi

Dimensions

Dimensions specifications
Overall Length261 in
Width Over Tires91 in
Height to Top of Isomount Cab119 in

Transmission

Transmission specifications
Max Speed - Forward25.1 mph
Max Speed - Reverse16.5 mph
Number of Gears - Forward6
Number of Gears - Reverse3
Transmission TypeTorque converter/ Power shift

Moldboard

Moldboard specifications
Moldboard Height16 in
Moldboard Width120 in
Moldboard Thickness1 in

Circle

Circle specifications
Max Lift Above Ground15 in
Max Reach Outside Tires - Left71 in
Max Reach Outside Tires - Right76 in
Diameter53 in
Rotation360 °

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total20 °
Ground Clearance20 in

Steering System

Steering System specifications
Turning Radius226 in
Articulation Angle25 °
