Komatsu

GD705A-4

Motor Grader

Max Power
199.9 hp
Net Power Gears 7-8
199.9 hp
All motor graders

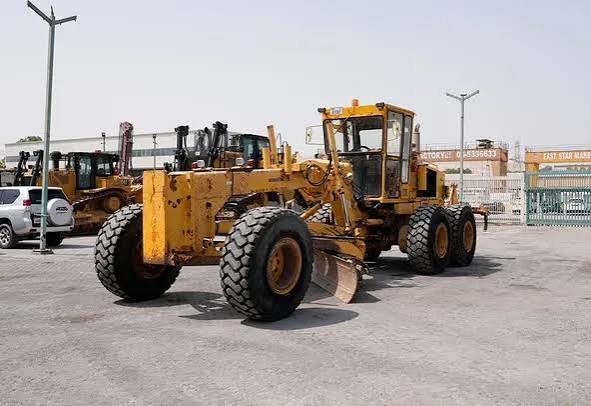

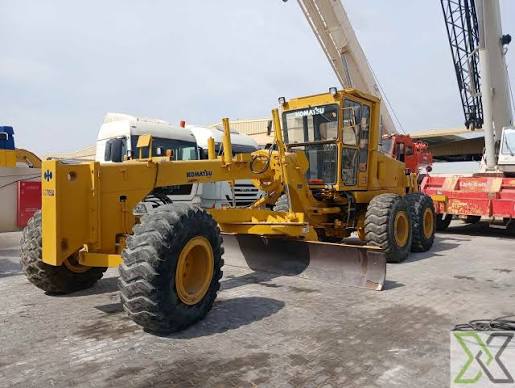

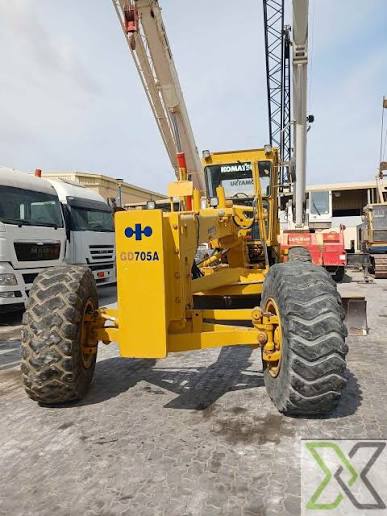

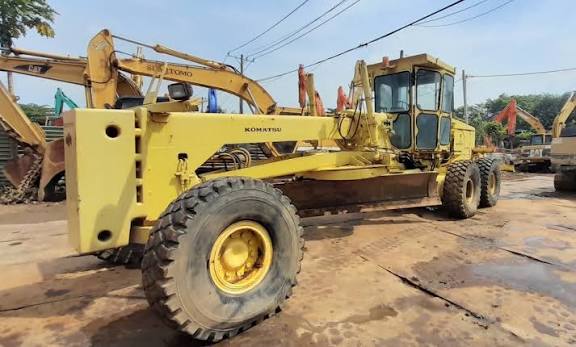

Komatsu GD705A-4 Motor Grader
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total38,845 lb
Tire Size16.00-24-12PR
Fuel Capacity105.7 gal

Engine

Engine specifications
Engine ModelS6D125
Displacement674 in³
Power Measured @2,000 rpm
Number of Cylinders6
Max Power199.9 hp
Net Power Gears 7-8199.9 hp

Dimensions

Dimensions specifications
Wheelbase254 in
Overall Length366 in
Width Over Tires110 in
Height to Top of Isomount Cab141 in
Blade Base115 in
Tandem Axle Wheelbase69 in
Rear Ground Clearance17 in

Transmission

Transmission specifications
Max Speed - Forward26.8 mph
Max Speed - Reverse28.6 mph
Number of Gears - Forward8

Moldboard

Moldboard specifications
Moldboard Height28 in
Moldboard Width170 in

Front Axle

Front Axle specifications
Ground Clearance17 in

Steering System

Steering System specifications
Turning Radius296 in
Articulation Angle26 °
