Komatsu

GD510R-1

Motor Grader

Max Power
124.8 hp
All motor graders

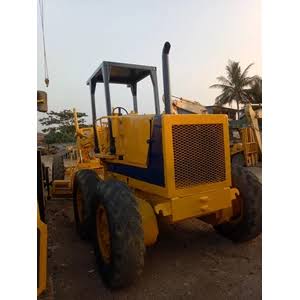

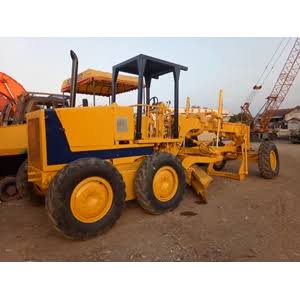

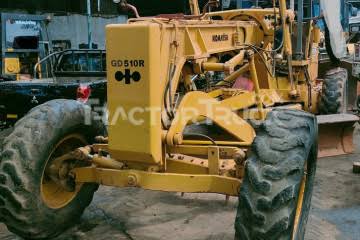

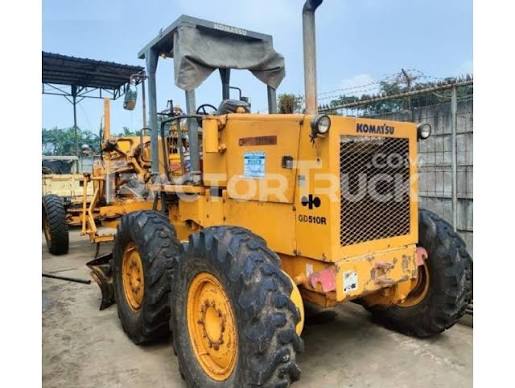

Komatsu GD510R-1 Motor Grader
1 / 5
Image 1 of 5
Image: indonetwork.co.id

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total23,590 lb
Tire Size13.00-24-8PR
Fuel Capacity60.0 gal

Engine

Engine specifications
Engine ModelS6D95L
Displacement299 in³
Power Measured @2,500 rpm
Number of Cylinders6
Max Power124.8 hp
Net Power Gear 4-6124.8 hp

Dimensions

Dimensions specifications
Wheelbase228 in
Overall Length308 in
Width Over Tires95 in
Height to Top of Isomount Cab138 in
Blade Base101 in
Tandem Axle Wheelbase61 in
Front Ground Clearance15 in

Transmission

Transmission specifications
Max Speed - Forward26.7 mph
Max Speed - Reverse16.6 mph
Number of Gears - Forward4
Number of Gears - Reverse4

Moldboard

Moldboard specifications
Moldboard Height25 in
Moldboard Width146 in

Front Axle

Front Axle specifications
Ground Clearance15 in

Steering System

Steering System specifications
Turning Radius410 in
