Sany

PQ160III

Motor Grader

Max Power
232.0 hp
All motor graders

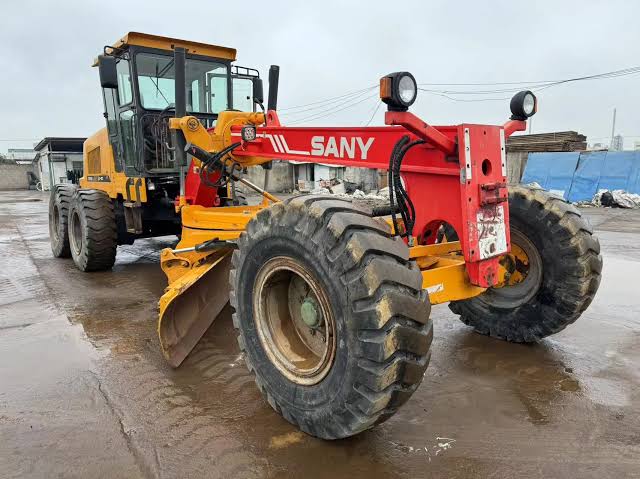

Sany PQ160III Motor Grader
1 / 5
Image 1 of 5
Image: machanx.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total30,865 lb

Engine

Engine specifications
Engine ModelQSB6.7-C173
Power Measured @2,200 rpm
Number of Cylinders6
Max Power232.0 hp
Net Power Gear 1-2173.0 hp

Dimensions

Dimensions specifications
Overall Length145 in
Width Over Tires108 in
Height to Top of Isomount Cab127 in

Transmission

Transmission specifications
Max Speed - Forward19.9 mph
Max Speed - Reverse19.9 mph
Number of Gears - Forward6
Number of Gears - Reverse3
Transmission TypeHydrostatic

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width145 in
Moldboard Thickness1 in

Circle

Circle specifications
Max Lift Above Ground19 in
Max Reach Outside Tires - Left2 in
Max Reach Outside Tires - Right2 in
Blade Tip Angle - Front90 °
Blade Tip Angle - Rear90 °

Front Axle

Front Axle specifications
Wheel Lean17 °
Oscillation - Total15 °

Steering System

Steering System specifications
Turning Radius122 in
