Case

885B

Motor Grader

Max Operation Weight - Total
39,771 lb
Max Power
234.0 hp
All motor graders

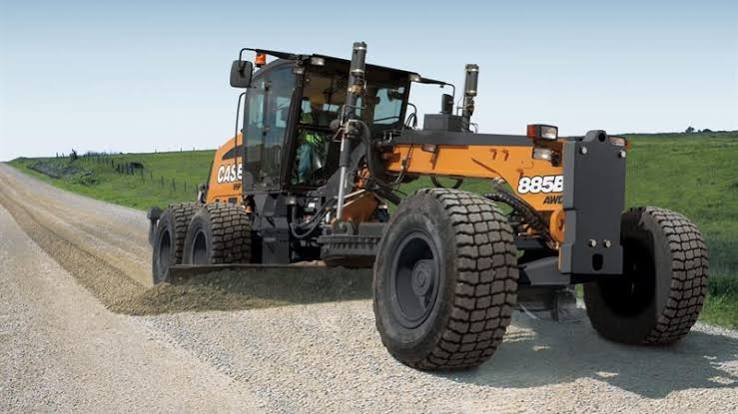

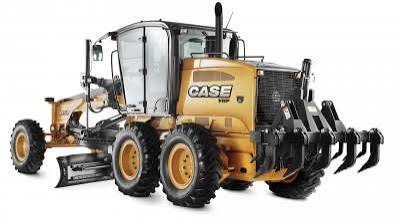

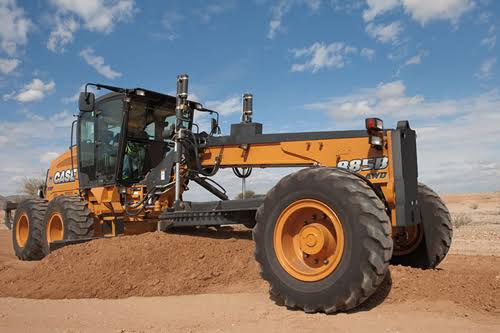

Case 885B Motor Grader
1 / 5
Image 1 of 5
Image: casece.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total39,771 lb
Tire Size610 mm

Engine

Engine specifications
Engine ModelF4HE9687K
Displacement409 in³
Torque726 lb-ft
Max Power234.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow49.2 gal/min

Dimensions

Dimensions specifications
Wheelbase246 in
Overall Length336 in
Width Over Tires104 in
Height to Top of Isomount Cab125 in
Blade Base102 in
Tandem Axle Wheelbase65 in
Wheel base to center of tandem32 in

Transmission

Transmission specifications
Max Speed - Forward27.9 mph
Number of Gears - Forward8
Number of Gears - Reverse4

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Thickness1 in
Blade Down Pressure21,473 lb
Moldboard Length168 in
