Mitsubishi

MG230-E

Motor Grader

Max Power
115.0 hp
All motor graders

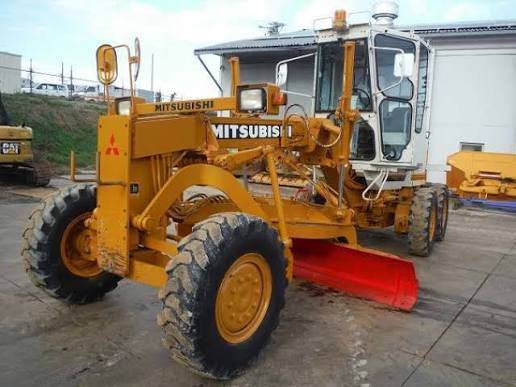

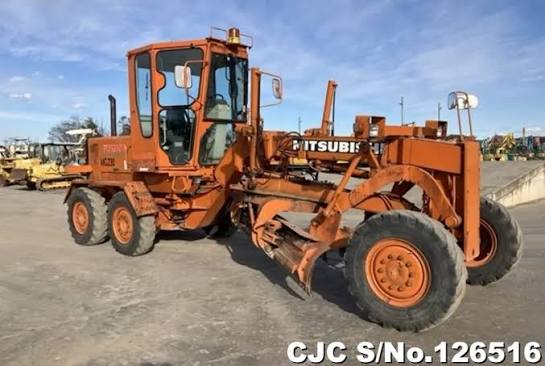

Mitsubishi MG230-E Motor Grader
1 / 5
Image 1 of 5
Image: machinery.carjunction.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total24,383 lb
Tire Size13.00-24-12
Fuel Capacity55.5 gal
Hydraulic System Fluid Capacity29.1 gal
Tandem Case Fluid Capacity (each)7.4 gal
Operating Voltage24 V
Alternator Supplied Amperage40 A
Transmission Fluid Capacity6.1 gal
Circle Gearbox Fluid Capacity1.0 gal
Oil System Fluid Capacity4.3 gal

Engine

Engine specifications
Engine Model6D34-TE1
Displacement358 in³
Power Measured @2,500 rpm
Number of Cylinders6
Max Power115.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow29.1 gal/min
Pump Typetandem gear
Relief Valve Pressure3 psi

Dimensions

Dimensions specifications
Wheelbase209 in
Overall Length289 in
Width Over Tires85 in
Height to Top of Isomount Cab120 in
Blade Base86 in

Transmission

Transmission specifications
Max Speed - Forward20.3 mph
Max Speed - Reverse20.7 mph
Number of Gears - Forward6
Number of Gears - Reverse6
Transmission Typeplanetary

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width122 in
Moldboard Thickness1 in

Circle

Circle specifications
Max Lift Above Ground17 in
Blade Tip Angle - Front40 °
Rotation360 °
Blade Tip Angle - Rear5 °
Shift Left65 in
Shift Right66 in

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total30 °
Ground Clearance19 in

Steering System

Steering System specifications
Articulation Angle26 °
