Mitsubishi

MG330-R

Motor Grader

Max Power
135.0 hp
Net Power Gear 5-6
135.0 hp
All motor graders

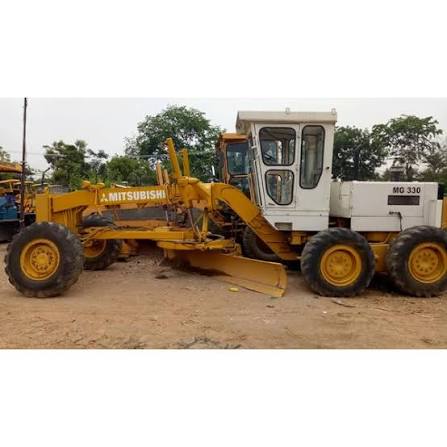

Mitsubishi MG330-R Motor Grader
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total24,152 lb
Tire Size13.00-24-8PR
Operating Voltage24 V

Engine

Engine specifications
Engine ModelC 6D16-TE1
Displacement461 in³
Torque Measured @2,200 rpm
Max Power135.0 hp
Net Power Gear 5-6135.0 hp

Dimensions

Dimensions specifications
Wheelbase226 in
Overall Length308 in
Width Over Tires95 in
Height to Top of Isomount Cab110 in

Transmission

Transmission specifications
Max Speed - Forward26.5 mph
Max Speed - Reverse27.0 mph
Number of Gears - Forward6
Number of Gears - Reverse6
Transmission Typepower shift planetary gear hydraulically actuated

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width146 in
Moldboard Thickness1 in

Steering System

Steering System specifications
Turning Radius390 in
