Komatsu

H135S

Excavator

Operating Weight
308,647 lb
Max Digging Depth
324 in
Max Digging Depth
457 in
Net Power
728.0 hp
All excavators

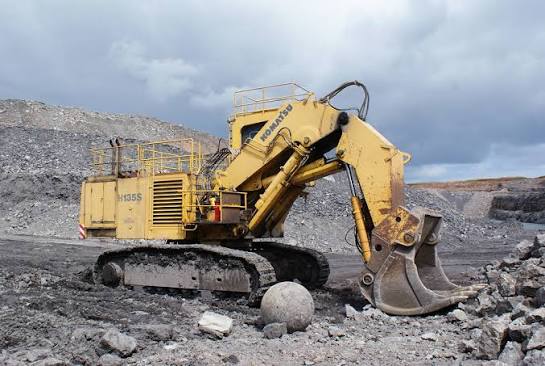

Komatsu H135S Excavator
1 / 5
Image 1 of 5
Image: snabus.ru

Specifications

56 data points

Operating Specifications

Operating Specifications specifications
Operating Weight308,647 lb
Fuel Capacity475.5 gal
Hydraulic Pump Flow Capacity435.9 gal/min
Hydraulic System Fluid Capacity425.4 gal
Hydraulic System Relief Valve Pressure4,495 psi
Swing Speed6 rpm

Engine

Engine specifications
Engine ModelVTA28-C-800
Power Measured @1,800 rpm
Gross Power728.2 hp
Net Power728.0 hp
Number of Cylinders12
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab246 in
Length of Track on Ground193 in
Tail Swing Radius196 in
Width to Outside of Tracks202 in
Removal Counterweight Clearance77 in
Upper Structure Ground Clearance77 in
Length of Tracks254 in

Undercarriage

Undercarriage specifications
Ground Pressure29 psi
Track Gauge168 in
Max Travel Speed1.5 mph
Shoe Size24 in
Loading Shovel Operating Weight308,647 lb
Loading Shovel Shoe Width24 in
Loading Shovel Ground Pressure29 psi

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth324 in
Max Reach Along Ground552 in
Max Loading Height386 in
Max Vertical Wall Digging Depth119 in
Max Cutting Height580 in
Shipping Length of Unit556 in
Shipping Height of Unit304 in

Bucket

Bucket specifications
Reference Bucket Capacity12.50 yd³
Maximum Bucket Capacity12.50 yd³
Minimum Bucket Capacity4.00 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth457 in
Max Cutting Height694 in
Max Loading Height528 in
Max Reach Along Ground718 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth500 in
Max Cutting Height706 in
Max Loading Height536 in
Max Reach Along Ground745 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth576 in
Max Cutting Height721 in
Max Reach Along Ground820 in
Max Loading Height568 in

Loading Shovel

Loading Shovel specifications
Max Dig Depth119 in
Max Cutting Height531 in
Max Dump Height383 in
Max Dig Reach457 in
Height to Top of Boom - shovel257 in
Overall Length - shovel430 in
