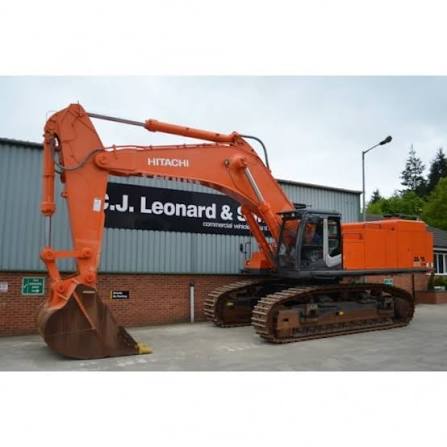

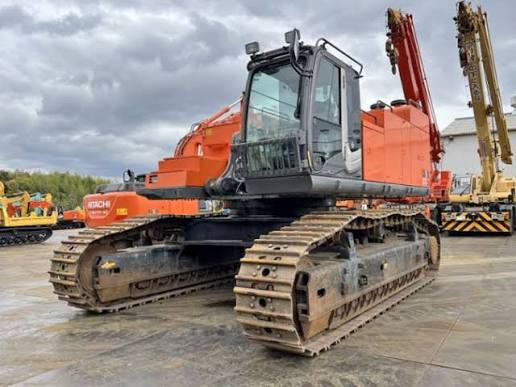

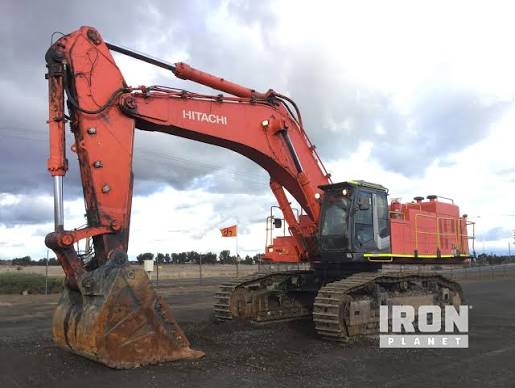

Hitachi
ZX870LCH-3
- Operating Weight
- 185,188 lb
- Max Digging Depth
- 282 in
- Max Digging Depth
- 308 in
- Net Power
- 532.0 hp
1 / 5
Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 185,188 lb |
|---|---|
| Fuel Capacity | 295.9 gal |
| Hydraulic Pump Flow Capacity | 279.0 gal/min |
| Hydraulic System Fluid Capacity | 208.7 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 15.1 gal |
| Cooling System Fluid Capacity | 30.7 gal |
| Swing Drive Fluid Capacity | 4.0 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AH-6WG1XYSA-03 |
|---|---|
| Displacement | 957 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 532.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 1,660 lb-ft |
Dimensions
| Ground Clearance | 36 in |
|---|---|
| Height - Top of Cab | 150 in |
| Length of Track on Ground | 202 in |
| Tail Swing Radius | 181 in |
| Width to Outside of Tracks | 162 in |
| Removal Counterweight Clearance | 67 in |
Undercarriage
| Ground Pressure | 18 psi |
|---|---|
| Track Gauge | 137 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 2.6 mph |
| Shoe Size | 26 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 3 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 282 in |
|---|---|
| Max Reach Along Ground | 474 in |
| Max Loading Height | 320 in |
| Max Vertical Wall Digging Depth | 162 in |
| Max Cutting Height | 474 in |
Bucket
| Reference Bucket Capacity | 4.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 5.90 yd³ |
| Minimum Bucket Capacity | 3.81 yd³ |
Swing Mechanism
| Swing Speed | 7 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 308 in |
|---|---|
| Max Vertical Wall Digging Depth | 240 in |
| Max Cutting Height | 478 in |
| Max Loading Height | 323 in |
| Max Reach Along Ground | 493 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 350 in |
|---|---|
| Max Cutting Height | 512 in |
| Max Loading Height | 357 in |
| Max Vertical Wall Digging Depth | 270 in |
| Max Reach Along Ground | 545 in |
| Shipping Length of Unit | 582 in |
| Shipping Height of Unit | 180 in |
