Komatsu

PC600LC-8

Excavator

Operating Weight
128,530 lb
Max Digging Depth
335 in
Max Digging Depth
366 in
All excavators

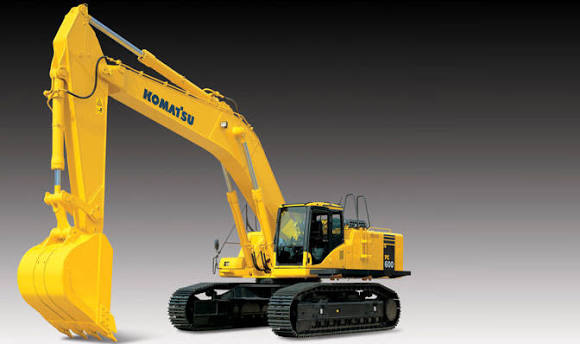

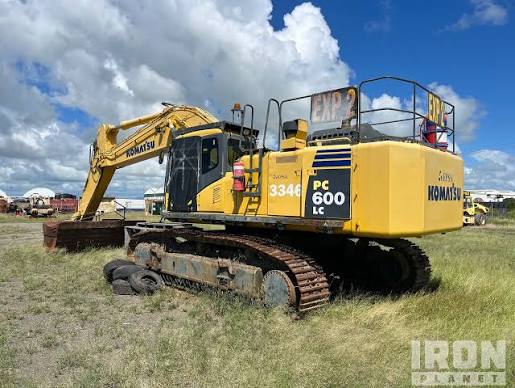

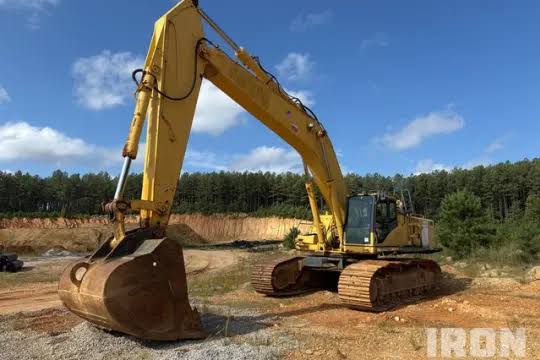

Komatsu PC600LC-8 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

83 data points

Operating Specifications

Operating Specifications specifications
Operating Weight128,530 lb
Operating Weight w/o Attachment148,589 lb
Fuel Capacity232.5 gal
Hydraulic Pump Flow Capacity216.0 gal/min
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity10.6 gal
Cooling System Fluid Capacity15.4 gal
Operating Voltage24 V
Swing Drive Fluid Capacity6.8 gal
Alternator Supplied Amperage75 A
Max Drawbar Pull93,250 lb

Engine

Engine specifications
Engine ModelSAA6D140E-5
Displacement930 in³
Power Measured @1,800 rpm
Number of Cylinders6

Hydraulic System

Hydraulic System specifications
Pump TypeVariable-capacity piston pumps
Pump Capacity216.7 gal/min
Relief Pressure4,980 psi

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab130 in
Length of Track on Ground181 in
Tail Swing Radius155 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance54 in

Transmission

Transmission specifications
Max Speed3.1 mph
Transmission TypeHydrostatic
Number of Forward Gears2

Undercarriage

Undercarriage specifications
Track Gauge102 in
Number of Track Rollers per Side9
Max Travel Speed3.0 mph
Shoe Size36 in
Number of Shoes per Side52
Number of Carrier Rollers per Side3
Drawbar Pull93,250 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth335 in
Max Reach Along Ground504 in
Max Loading Height315 in
Max Vertical Wall Digging Depth296 in
Max Cutting Height468 in
Shipping Length of Unit509 in
Shipping Height of Unit170 in

Bucket

Bucket specifications
Reference Bucket Capacity3.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
Swing Torque154,479 lb-ft

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth366 in
Max Vertical Wall Digging Depth330 in
Max Cutting Height480 in
Max Loading Height325 in
Max Reach Along Ground534 in
Shipping Length of Unit505 in
Shipping Height of Unit183 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth403 in
Max Cutting Height496 in
Max Loading Height340 in
Max Vertical Wall Digging Depth366 in
Max Reach Along Ground569 in
Shipping Length of Unit494 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth322 in
Max Cutting Height452 in
Max Reach Along Ground489 in
Max Loading Height301 in
Max Vertical Wall Dig Depth263 in
Shipping Length of Unit494 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth278 in
Max Reach Along Ground445 in
Max Cutting Height439 in
Max Loading Height284 in
Max Vertical Wall Dig Depth222 in
Shipping Height of Unit181 in
Shipping Length of Unit470 in

Boom/Stick Mat. Handler Option 1

Boom/Stick Mat. Handler Option 1 specifications
Boom/Stick Option (MAT) 12-piece front 16.8m 55'
Max Depth228 in
Max Height728 in
Max Reach Along Ground662 in

Boom/Stick Mat. Handler Option 2

Boom/Stick Mat. Handler Option 2 specifications
Boom/Stick Option (MAT) 22-piece front 18.3m 60'
Max Depth330 in
Max Height733 in
Max Reach Along Ground721 in

Track Undercarriage

Track Undercarriage specifications
Shoe Size30 in
Number of Track Rollers per Side9
Length of Track on Ground181 in
Number of Shoes per Side52
Track Gauge102 in
