Kobelco

SK260LC-9

Excavator

Operating Weight
123,966 lb
Max Digging Depth
258 in
Max Digging Depth
276 in
Net Power
183.8 hp
All excavators

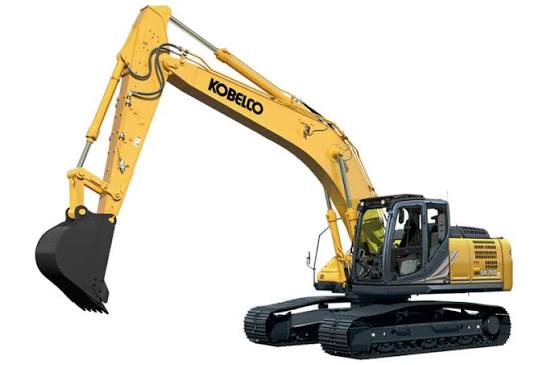

Kobelco SK260LC-9 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

63 data points

Operating Specifications

Operating Specifications specifications
Operating Weight123,966 lb
Fuel Capacity121.6 gal
Hydraulic System Fluid Capacity74.0 gal
Hydraulic System Relief Valve Pressure4,970 psi
Engine Oil Capacity5.6 gal
Cooling System Fluid Capacity5.3 gal

Engine

Engine specifications
Engine ModelHINO J05E-TI
Displacement313 in³
Power Measured @2,100 rpm
Net Power183.8 hp
Max Torque482 lb-ft
Bore5 in
Stroke5 in
Engine TypeDirect injection
Max Digging Reach432 in

Dimensions

Dimensions specifications
Ground Clearance217 in
Height - Top of Cab122 in
Tail Swing Radius122 in
Gradeability70.0 %
Ground pressure7 psi
Overall width -Upper Structure119 in

Undercarriage

Undercarriage specifications
Track Gauge103 in
Max Travel Speed2.3 mph
Number of Shoes per Side51
Drawbar Pull54,900 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth258 in
Max Vertical Wall Digging Depth230 in
Max Cutting Height381 in
Minimum swing radius12 in
Max Digging Reach390 in
Max Digging Reach on Ground374 in
Bucket Digging Force - SAE34,171 lb
Bucket Digging Force - ISO38,218 lb
Max Dumping Clearance253 in
Min Dumping Clearance110 in
Arm Crowd Force - SAE30,799 lb
Arm Crowd Force-ISO31,923 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth276 in
Max Vertical Wall Digging Depth243 in
Max Cutting Height386 in
Minimum swing radius12 in
Max Digging Reach397 in
Max Digging Reach on Ground400 in
Bucket Digging Force - SAE34,171 lb
Bucket Digging Force - ISO38,218 lb
Max Dumping Clearance272 in
Min Dumping Clearance101 in
Horizontal Digging Stroke - Ground207 in
Arm Crowd Force-SAE26,078 lb
Arm Crowd Force-ISO27,427 lb

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth302 in
Max Cutting Height403 in
Max Vertical Wall Digging Depth265 in
Max Reach Along Ground427 in
Minimum swing radius12 in
Bucket Digging Force - SAE34,171 lb
Bucket Digging Force - ISO38,218 lb
Max Dumping Clearance278 in
Min Dumping Clearance74 in
Arm Crowd Force-SAE22,706 lb
Horizontal Digging Stroke - Ground256 in
Arm Crowd Force-ISO23,380 lb
