Kobelco

SK350 LC

Excavator

Operating Weight
79,587 lb
Max Digging Depth
299 in
Max Digging Depth
331 in
Net Power
264.0 hp
All excavators

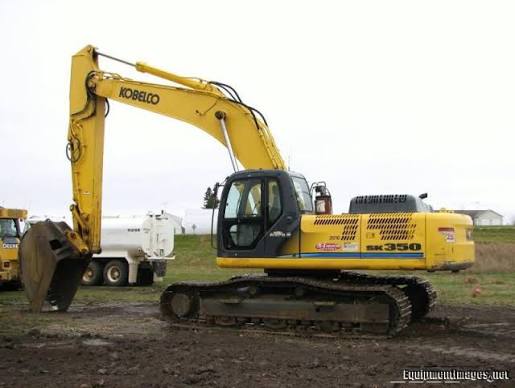

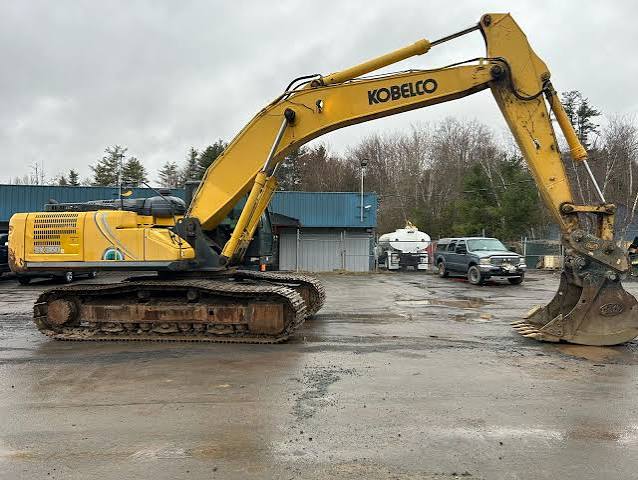

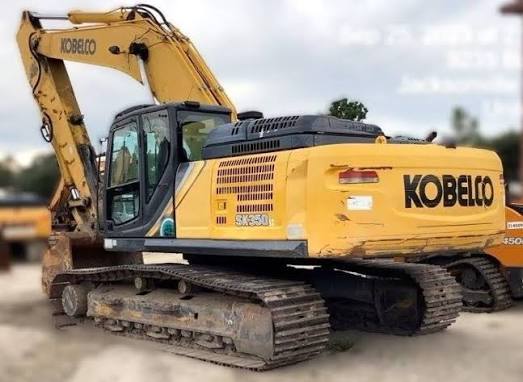

Kobelco SK350 LC Excavator
1 / 5
Image 1 of 5
Image: kobelco.co.nz

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight79,587 lb
Fuel Capacity153.3 gal
Hydraulic Pump Flow Capacity158.0 gal/min
Hydraulic System Fluid Capacity93.3 gal
Hydraulic System Relief Valve Pressure4,210 psi
Engine Oil Capacity7.6 gal
Cooling System Fluid Capacity8.2 gal

Engine

Engine specifications
Engine ModelJO8E-TM
Displacement469 in³
Power Measured @2,100 rpm
Net Power264.0 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab125 in
Length of Track on Ground159 in
Tail Swing Radius138 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge103 in
Max Travel Speed3.5 mph
Shoe Size32 in
Drawbar Pull72,388 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth299 in
Max Reach Along Ground435 in
Max Loading Height291 in
Max Vertical Wall Digging Depth260 in
Max Cutting Height418 in
Shipping Length of Unit442 in
Shipping Height of Unit135 in

Bucket

Bucket specifications
Reference Bucket Capacity1.90 yd³
Maximum Bucket Capacity2.80 yd³
Minimum Bucket Capacity0.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth331 in
Max Vertical Wall Digging Depth282 in
Max Cutting Height422 in
Max Loading Height298 in
Max Reach Along Ground465 in
Shipping Length of Unit443 in
Shipping Height of Unit142 in
