Komatsu

PC800-6

Excavator

Operating Weight
166,184 lb
Max Digging Depth
333 in
Net Power
443.9 hp
All excavators

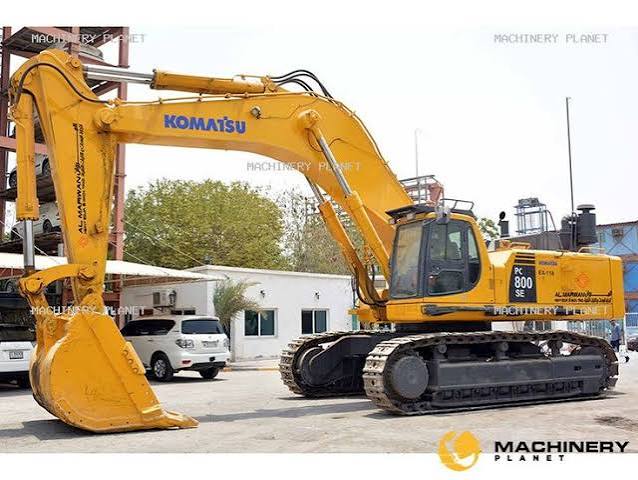

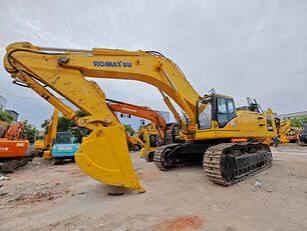

Komatsu PC800-6 Excavator
1 / 5
Image 1 of 5
Image: berrytractor.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight166,184 lb
Fuel Capacity232.5 gal
Hydraulic Pump Flow Capacity261.1 gal/min
Hydraulic System Fluid Capacity116.3 gal
Hydraulic System Relief Valve Pressure4,550 psi

Engine

Engine specifications
Engine ModelSAA6D140E
Displacement930 in³
Power Measured @1,800 rpm
Net Power443.9 hp

Dimensions

Dimensions specifications
Ground Clearance33 in
Height - Top of Cab154 in
Length of Track on Ground178 in
Tail Swing Radius170 in
Width to Outside of Tracks162 in
Removal Counterweight Clearance62 in

Undercarriage

Undercarriage specifications
Ground Pressure18 psi
Track Gauge138 in
Max Travel Speed2.7 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth333 in
Max Reach Along Ground528 in
Max Loading Height325 in
Max Vertical Wall Digging Depth231 in
Max Cutting Height472 in
Shipping Length of Unit545 in
Shipping Height of Unit189 in

Bucket

Bucket specifications
Reference Bucket Capacity4.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm
