John Deere

450D LC

Excavator

Operating Weight
106,180 lb
Max Digging Depth
288 in
Max Digging Depth
246 in
Net Power
348.0 hp
All excavators

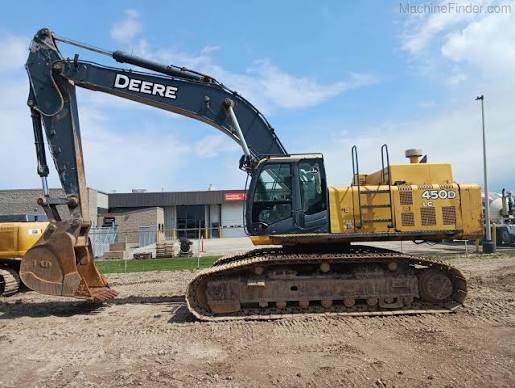

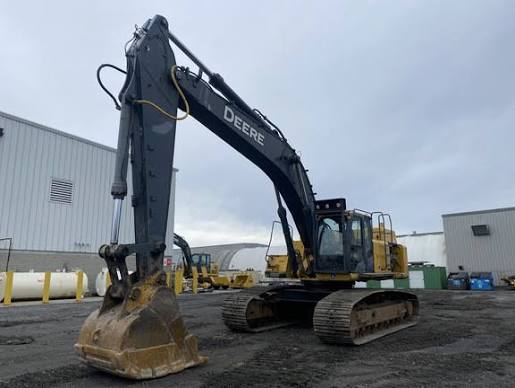

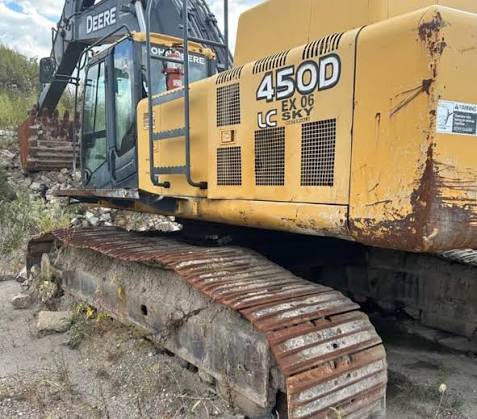

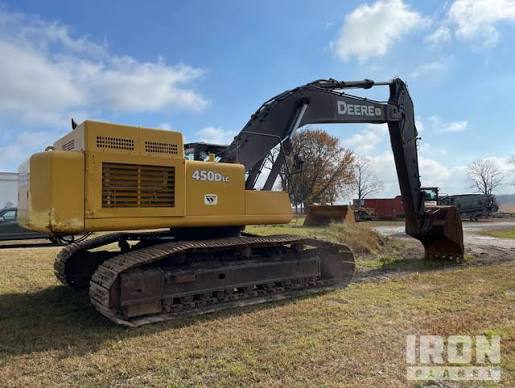

John Deere 450D LC Excavator
1 / 5
Image 1 of 5
Image: viequipmentltd.com

Specifications

69 data points

Operating Specifications

Operating Specifications specifications
Operating Weight106,180 lb
Fuel Capacity191.6 gal
Hydraulic Pump Flow Capacity200.3 gal/min
Hydraulic System Fluid Capacity148.0 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity14.8 gal
Cooling System Fluid Capacity50.7 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.3 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAH-6WG1XYSA-01
Displacement957 in³
Power Measured @1,800 rpm
Net Power348.0 hp
AspirationTurbocharged w/ cooler
Torque Measured @1,500 rpm
Max Torque1,164 lb-ft

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab132 in
Length of Track on Ground176 in
Tail Swing Radius144 in
Width to Outside of Tracks150 in
Removal Counterweight Clearance54 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge114 in
Number of Track Rollers per Side9
Max Travel Speed3.4 mph
Shoe Size36 in
Number of Shoes per Side53
Number of Carrier Rollers per Side3
Drawbar Pull79,590 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth288 in
Max Reach Along Ground441 in
Max Loading Height277 in
Max Vertical Wall Digging Depth207 in
Max Cutting Height404 in
Shipping Length of Unit473 in
Shipping Height of Unit143 in

Bucket

Bucket specifications
Reference Bucket Capacity3.10 yd³
Maximum Bucket Capacity4.20 yd³
Minimum Bucket Capacity1.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth246 in
Max Vertical Wall Digging Depth198 in
Max Cutting Height428 in
Max Loading Height289 in
Max Reach Along Ground419 in
Shipping Length of Unit443 in
Shipping Height of Unit148 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth306 in
Max Cutting Height435 in
Max Loading Height301 in
Max Vertical Wall Digging Depth259 in
Max Reach Along Ground467 in
Shipping Length of Unit469 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth326 in
Max Cutting Height439 in
Max Reach Along Ground483 in
Max Loading Height306 in
Max Vertical Wall Dig Depth276 in
Shipping Length of Unit469 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth360 in
Max Reach Along Ground517 in
Max Cutting Height462 in
Max Loading Height342 in
Max Vertical Wall Dig Depth331 in
Shipping Height of Unit180 in
Shipping Length of Unit468 in

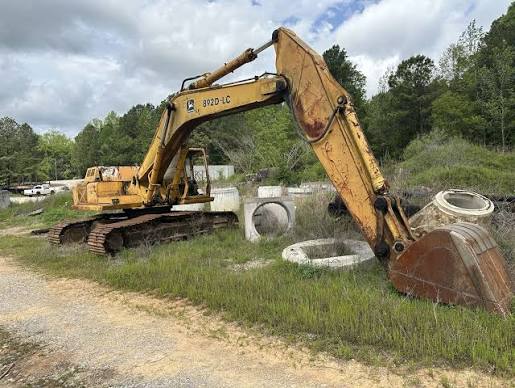

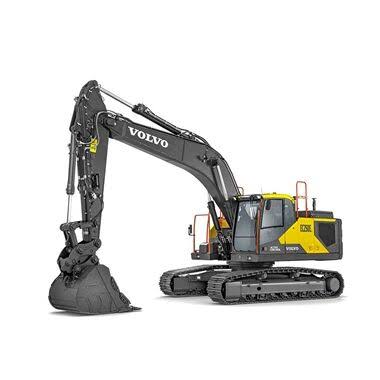

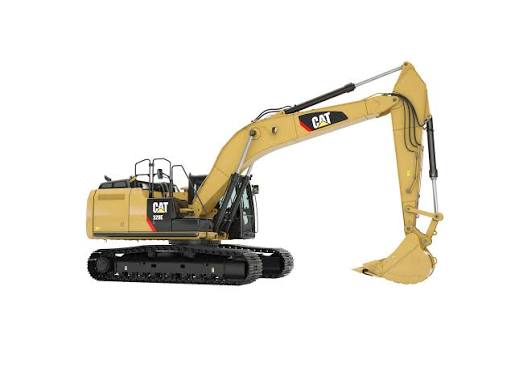

Comparable machines
