Komatsu

PC300-1

Excavator

Operating Weight
63,934 lb
Max Digging Depth
258 in
Max Digging Depth
282 in
Net Power
180.0 hp
All excavators

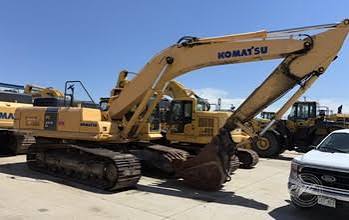

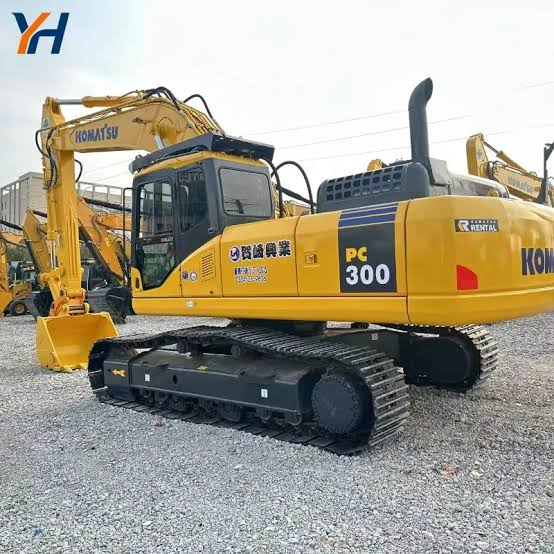

Komatsu PC300-1 Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight63,934 lb
Fuel Capacity116.3 gal
Hydraulic Pump Flow Capacity126.9 gal/min
Hydraulic System Fluid Capacity58.2 gal
Hydraulic System Relief Valve Pressure3,698 psi

Engine

Engine specifications
Engine Model-Cummins N855C
Displacement855 in³
Net Power180.0 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab121 in
Length of Track on Ground138 in
Tail Swing Radius133 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge95 in
Max Travel Speed1.9 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth258 in
Max Reach Along Ground410 in
Max Loading Height276 in
Max Vertical Wall Digging Depth220 in
Max Cutting Height393 in
Shipping Length of Unit445 in
Shipping Height of Unit127 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed7 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth282 in
Max Vertical Wall Digging Depth245 in
Max Cutting Height397 in
Max Loading Height282 in
Max Reach Along Ground431 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth320 in
Max Cutting Height413 in
Max Loading Height289 in
Max Vertical Wall Digging Depth289 in
Max Reach Along Ground467 in
