Case

CX470C

Excavator

Operating Weight
105,381 lb
Max Digging Depth
305 in
Max Digging Depth
271 in
Net Power
328.6 hp
All excavators

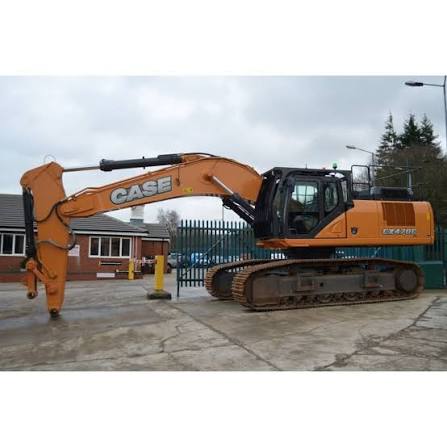

Case CX470C Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight105,381 lb
Fuel Capacity171.8 gal
Hydraulic Pump Flow Capacity192.4 gal/min
Hydraulic System Fluid Capacity121.6 gal
Cooling System Fluid Capacity12.5 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAL-6UZ1X
Power Measured @2,000 rpm
Gross Power362.1 hp
Net Power328.6 hp
AspirationTurbocharger
Torque Measured @1,500 rpm
Max Torque1,058 lb-ft
Engine MakeIsuzu

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab135 in
Length of Track on Ground215 in
Tail Swing Radius148 in
Width to Outside of Tracks132 in

Undercarriage

Undercarriage specifications
Ground Pressure12 psi
Track Gauge109 in
Number of Track Rollers per Side9
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Shoes per Side50
Number of Carrier Rollers per Side2
Drawbar Pull76,435 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth305 in
Max Reach Along Ground465 in
Max Loading Height305 in
Max Cutting Height439 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth271 in
Max Cutting Height426 in
Max Loading Height293 in
Max Reach Along Ground433 in
