Kobelco

SK500LC-10 H&W

Excavator

Operating Weight
124,782 lb
Max Digging Depth
295 in
Max Digging Depth
318 in
Net Power
369.0 hp
All excavators

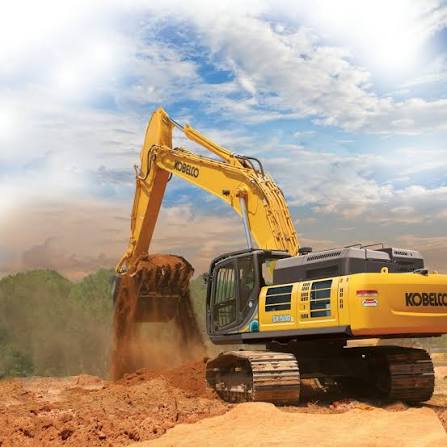

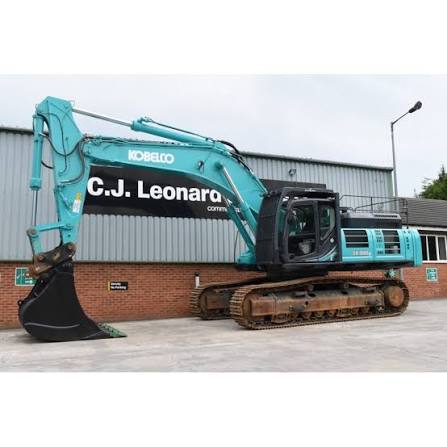

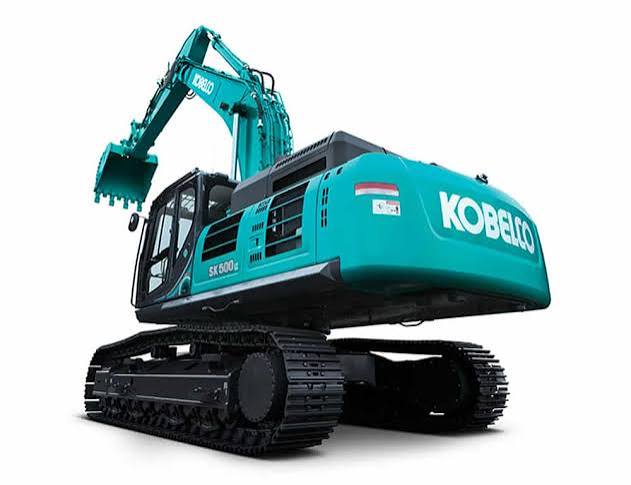

Kobelco SK500LC-10 H&W Excavator
1 / 5
Image 1 of 5
Image: farmersequip.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight124,782 lb
Fuel Capacity169.1 gal
DEF tank capacity21.9 gal

Engine

Engine specifications
Engine ModelHINO P11C-VN
Displacement642 in³
Power Measured @1,850 rpm
Net Power369.0 hp
Torque Measured @1,400 rpm
Max Torque1,084 lb-ft
Engine TypeDirect injection water-cooled 4-cycle 6-cylinder diesel engine with intercooler turbo-charger (Complies with EPA Tier IV Final)
Max Digging Reach531 in

Dimensions

Dimensions specifications
Ground Clearance25 in
Height - Top of Cab148 in
Tail Swing Radius151 in
Track Gauge127 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Max Travel Speed3.4 mph
Shoe Size32 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth295 in
Max Vertical Wall Digging Depth268 in
Minimum swing radius202 in
Max Digging Reach476 in
Max Digging Reach on Ground465 in
Max Digging Height444 in
Max Dumping Clearance312 in
Min Dumping Clearance124 in

General Specifications

General Specifications specifications
MaxPumpFlow97.8 gal/min

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth318 in
Max Vertical Wall Digging Depth283 in
Minimum swing radius205 in
Max Digging Reach497 in
Max Digging Reach on Ground486 in
Max Dumping Clearance322 in
Min Dumping Clearance101 in
Max. digging height454 in
Horizontal Digging Stroke - Ground282 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth352 in
Max Vertical Wall Digging Depth318 in
Max Reach Along Ground521 in
Minimum swing radius209 in
Max Dumping Clearance341 in
Min Dumping Clearance67 in
Horizontal Digging Stroke - Ground330 in
Max. digging height475 in
