Komatsu

PC01-1

Mini Excavator

Operating Weight
838 lb
Max Digging Depth
42 in
Net Power
3.5 hp
All mini excavators

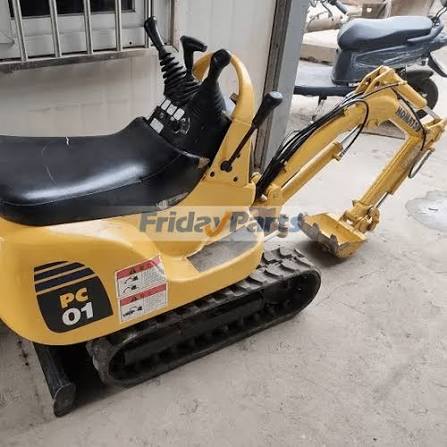

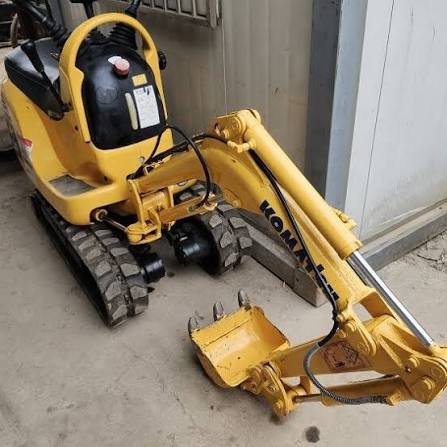

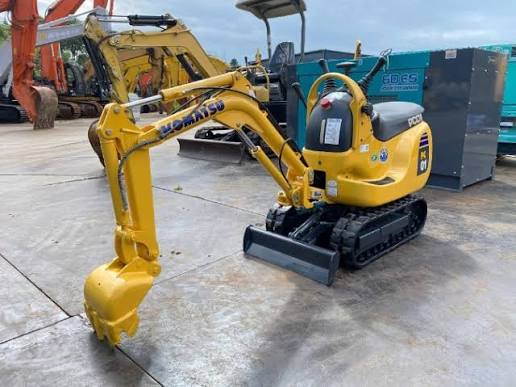

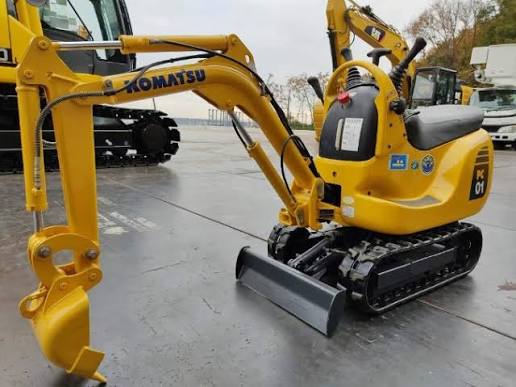

Komatsu PC01-1 Mini Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight838 lb
Fuel Capacity1.2 gal
Hydraulic Pump Flow Capacity2.7 gal/min
Hydraulic System Fluid Capacity1.3 gal
Hydraulic System Relief Valve Pressure2,130 psi

Engine

Engine specifications
Engine ModelGX160KI
Displacement10 in³
Power Measured @3,000 rpm
Net Power3.5 hp

Dimensions

Dimensions specifications
Ground Clearance5 in
Length of Track on Ground26 in
Tail Swing Radius26 in
Width to Outside of Tracks24 in
Removal Counterweight Clearance12 in

Undercarriage

Undercarriage specifications
Ground Pressure2 psi
Track Gauge18 in
Max Travel Speed0.9 mph
Shoe Size5 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth42 in
Max Reach Along Ground77 in
Max Vertical Wall Digging Depth28 in
Max Loading Height52 in
Shipping Length of Unit83 in
Max Cutting Height73 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed7 rpm
