Komatsu

PC02-1

Mini Excavator

Operating Weight
1,168 lb
Max Digging Depth
52 in
Net Power
4.5 hp
All mini excavators

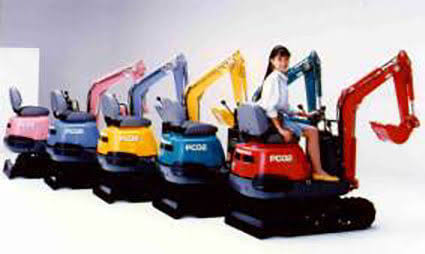

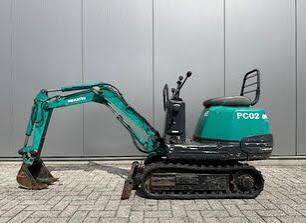

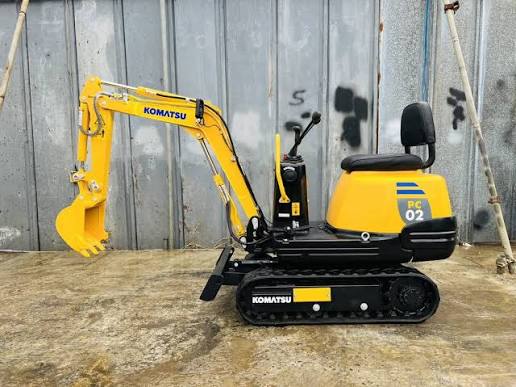

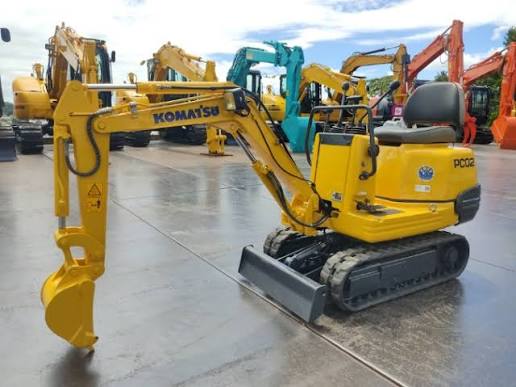

Komatsu PC02-1 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,168 lb
Fuel Capacity1.0 gal
Hydraulic Pump Flow Capacity3.3 gal/min
Hydraulic System Fluid Capacity2.0 gal
Hydraulic System Relief Valve Pressure2,130 psi

Engine

Engine specifications
Engine Model1D75
Displacement17 in³
Power Measured @2,500 rpm
Net Power4.5 hp

Dimensions

Dimensions specifications
Ground Clearance6 in
Length of Track on Ground31 in
Tail Swing Radius28 in
Width to Outside of Tracks28 in
Removal Counterweight Clearance13 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Track Gauge22 in
Max Travel Speed1.0 mph
Shoe Size6 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth52 in
Max Reach Along Ground93 in
Max Vertical Wall Digging Depth37 in
Max Loading Height61 in
Shipping Length of Unit91 in
Max Cutting Height88 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
