Komatsu

PC100

Excavator

Operating Weight
23,148 lb
Max Digging Depth
181 in
Max Digging Depth
198 in
Net Power
81.0 hp
All excavators

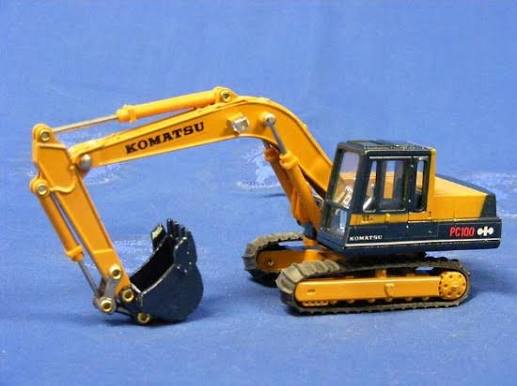

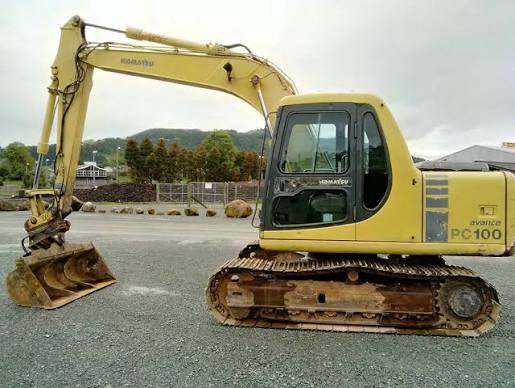

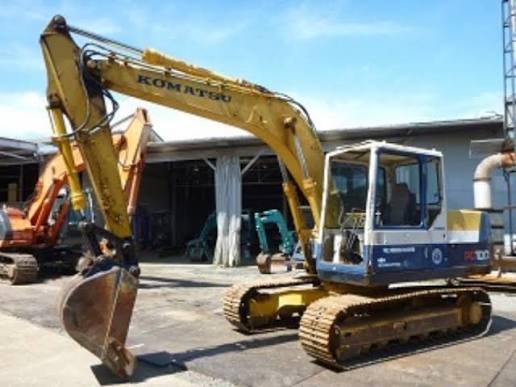

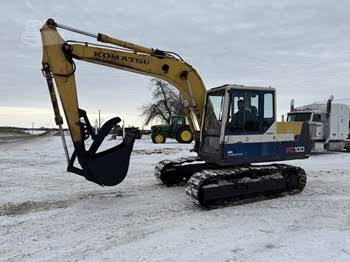

Komatsu PC100 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,148 lb
Fuel Capacity60.8 gal
Hydraulic Pump Flow Capacity65.6 gal/min
Hydraulic System Fluid Capacity38.4 gal
Hydraulic System Relief Valve Pressure2,500 psi

Engine

Engine specifications
Engine ModelS4D 105-5
Displacement264 in³
Net Power81.0 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab106 in
Length of Track on Ground93 in
Tail Swing Radius88 in
Width to Outside of Tracks91 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge72 in
Max Travel Speed2.2 mph
Shoe Size19 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth181 in
Max Reach Along Ground283 in
Max Loading Height197 in
Max Vertical Wall Digging Depth155 in
Max Cutting Height283 in
Shipping Length of Unit283 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth198 in
Max Vertical Wall Digging Depth167 in
Max Cutting Height288 in
Max Loading Height202 in
Max Reach Along Ground298 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth215 in
Max Cutting Height292 in
Max Loading Height205 in
Max Vertical Wall Digging Depth180 in
Max Reach Along Ground312 in
