Kato

HD250VII

Excavator

Operating Weight
13,889 lb
Max Digging Depth
163 in
Net Power
54.0 hp
All excavators

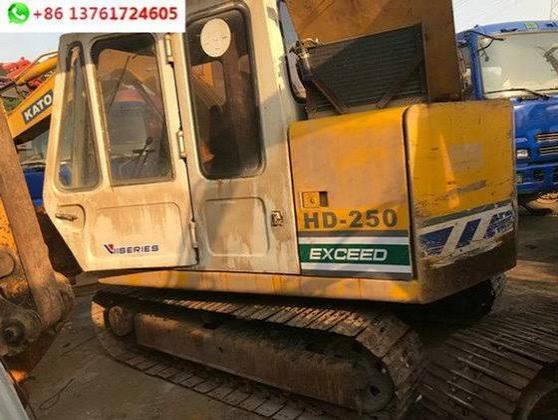

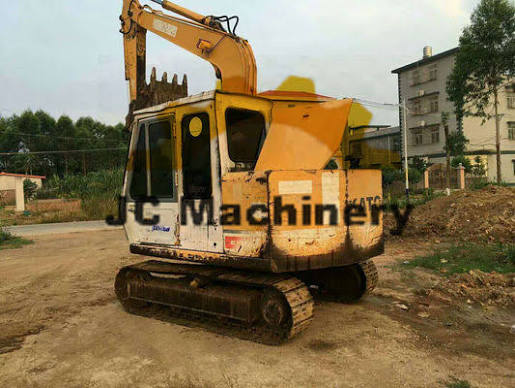

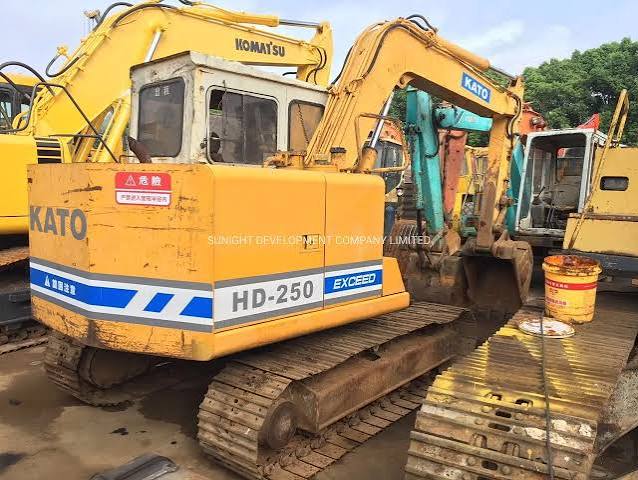

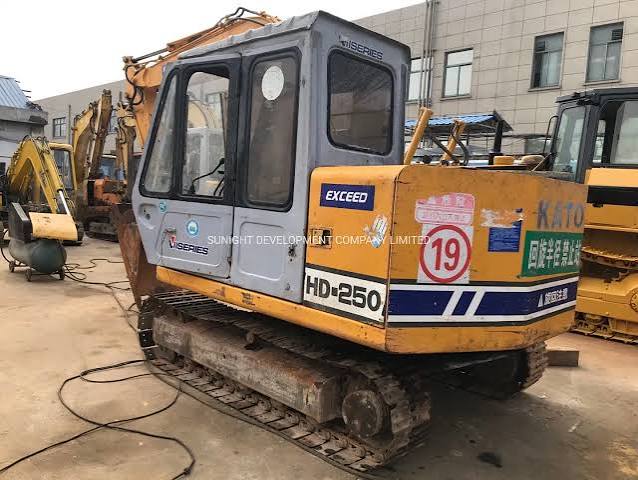

Kato HD250VII Excavator
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,889 lb
Fuel Capacity37.0 gal
Hydraulic System Relief Valve Pressure3,980 psi

Engine

Engine specifications
Engine ModelC S4F
Displacement180 in³
Power Measured @2,200 rpm
Net Power54.0 hp
Number of Cylinders6
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab101 in
Tail Swing Radius70 in
Width to Outside of Tracks85 in
Removal Counterweight Clearance29 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge67 in
Max Travel Speed3.5 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth163 in
Max Loading Height176 in
Max Vertical Wall Digging Depth141 in
Max Cutting Height258 in
Shipping Length of Unit239 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed16 rpm
