Komatsu

PC120-6

Excavator

Max Digging Depth
202 in
Max Digging Depth
219 in
All excavators

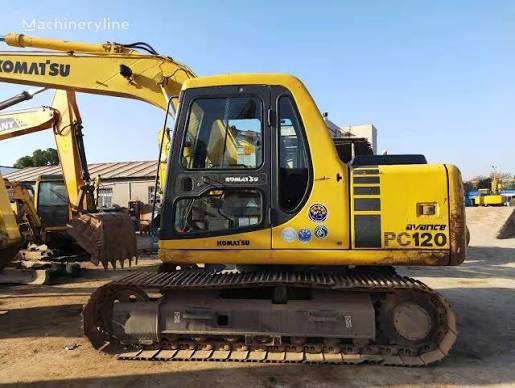

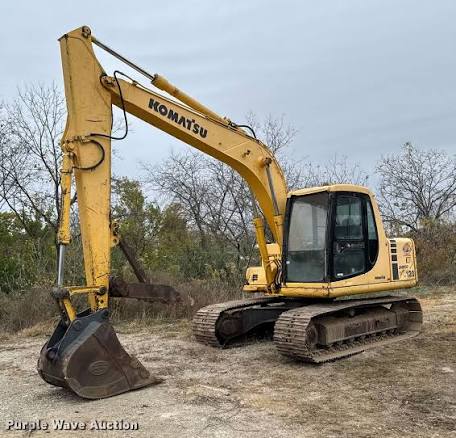

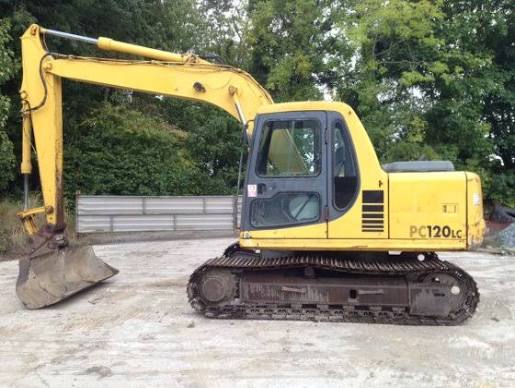

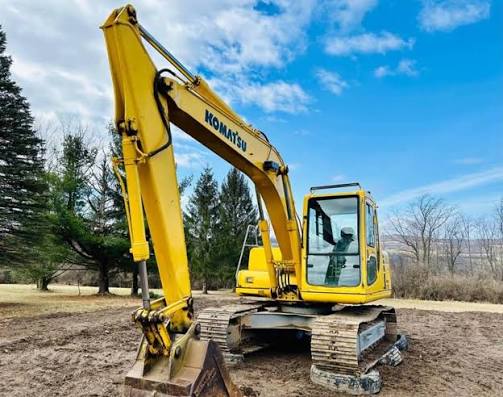

Komatsu PC120-6 Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity60.8 gal
Hydraulic System Fluid Capacity26.5 gal

Engine

Engine specifications
Engine ModelS4D102E
Displacement239 in³

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab108 in
Length of Track on Ground109 in
Tail Swing Radius84 in
Width to Outside of Tracks97 in
Removal Counterweight Clearance35 in
Digging Depth228 in
Digging Reach228 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge78 in
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth202 in
Max Reach Along Ground307 in
Max Loading Height233 in
Max Vertical Wall Digging Depth179 in
Max Cutting Height329 in
Shipping Length of Unit300 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity0.80 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth219 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height340 in
Max Loading Height244 in
Max Reach Along Ground323 in
Shipping Length of Unit300 in
Shipping Height of Unit108 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth238 in
Max Cutting Height354 in
Max Loading Height258 in
Max Vertical Wall Digging Depth211 in
Max Reach Along Ground342 in
Shipping Length of Unit296 in
Shipping Height of Unit121 in
