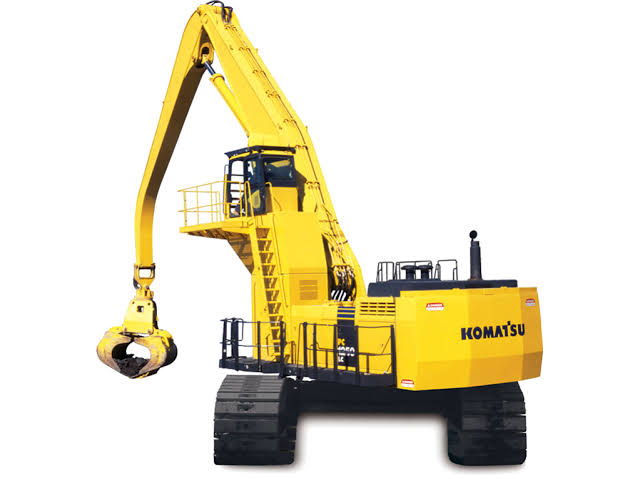

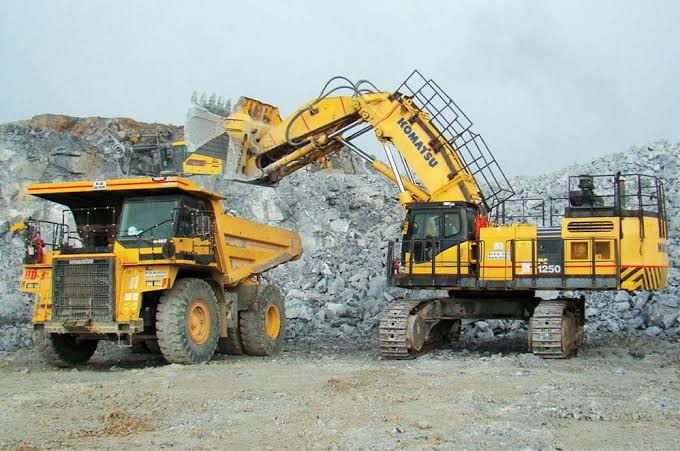

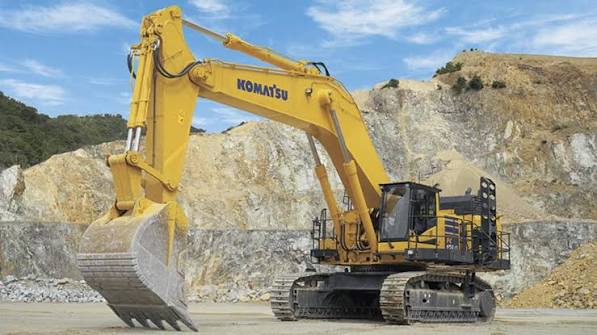

KomatsuKomatsu
PC1250LC-7
Mini Excavator
4 specifications
Komatsu
PC1250-8
- Operating Weight
- 239,880 lb
- Max Digging Depth
- 369 in
- Gross Power
- 688.0 hp
- Net Power
- 672.0 hp
1 / 5
Image 1 of 5
Specifications
59 data points
Operating Specifications
| Operating Weight | 239,880 lb |
|---|---|
| Fuel Capacity | 359.3 gal |
| Hydraulic System Fluid Capacity | 177.0 gal |
| Engine Oil Capacity | 22.7 gal |
| Cooling System Fluid Capacity | 37.6 gal |
| Swing Speed | 6 rpm |
Engine
| Engine Model | SAA6D170E-5 |
|---|---|
| Displacement | 1,413 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 688.0 hp |
| Net Power | 672.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged aftercooled cooled EGR |
Dimensions
| Height - Top of Cab | 162 in |
|---|---|
| Length of Track on Ground | 198 in |
| Tail Swing Radius | 190 in |
| Upper Structure Ground Clearance | 71 in |
| Length of Tracks | 253 in |
Undercarriage
| Max Travel Speed | 2.0 mph |
|---|---|
| Number of Upper Rollers | 3 |
| Loading Shovel Operating Weight | 244,493 lb |
| Loading Shovel Shoe Width | 28 in |
| Loading Shovel Ground Pressure | 21 psi |
| Number of Lower Rollers | 8 |
| Backhoe Shoe Width 1 | 28 in |
| Backhoe Operating Weight - Shoe 1 | 234,790 lb |
| Backhoe Ground Pressure - Shoe 1 | 20 psi |
| Number of Track Shoes per Side | 48 |
| Backhoe Shoe Width 2 | 39 in |
| Backhoe Ground Pressure - Shoe 2 | 14 psi |
| Backhoe Operating Weight - Shoe 2 | 239,880 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 369 in |
|---|---|
| Max Reach Along Ground | 592 in |
Bucket
| Reference Bucket Capacity | 6.61 yd³ |
|---|---|
| Maximum Bucket Capacity | 6.91 yd³ |
| Minimum Bucket Capacity | 4.50 yd³ |
Loading Shovel
| Max Dig Depth | 144 in |
|---|---|
| Max Dig Reach | 450 in |
| Max Cutting Height | 486 in |
| Max Dump Height | 343 in |
| Arm Crowd Force | 136,708 lb-ft |
Backhoe Boom / Stick 1
| Max Dig Depth | 369 in |
|---|---|
| Max Cutting Height | 528 in |
| Max Dump Height | 342 in |
| Max Reach on Ground | 592 in |
| Max Vertical Wall Dig Depth | 300 in |
| Arm Crowd Force | 88,179 lb-ft |
Backhoe Boom / Stick 2
| Max Dig Depth | 411 in |
|---|---|
| Max Cutting Height | 531 in |
| Max Dump Height | 354 in |
| Max Reach on Ground | 630 in |
| Max Vertical Wall Dig Depth | 335 in |
| Arm Crowd Force | 73,409 lb-ft |
Backhoe Boom / Stick 3
| Max Dig Depth | 456 in |
|---|---|
| Max Cutting Height | 548 in |
| Max Dump Height | 372 in |
| Max Reach on Ground | 674 in |
| Max Vertical Wall Dig Depth | 373 in |
| Arm Crowd Force | 63,269 lb-ft |
