Komatsu

PC1250SP-7

Mini Excavator

Operating Weight
235,233 lb
Max Digging Depth
312 in
Net Power
651.0 hp
All mini excavators

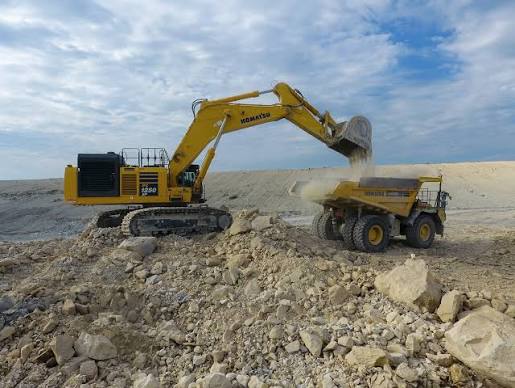

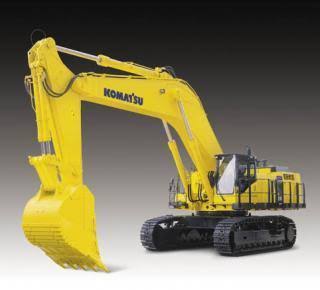

Komatsu PC1250SP-7 Mini Excavator
1 / 5
Image 1 of 5
Image: machanx.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight235,233 lb
Fuel Capacity359.3 gal
Hydraulic Pump Flow Capacity261.1 gal/min
Hydraulic System Fluid Capacity177.0 gal
Hydraulic System Relief Valve Pressure4,978 psi
Operating Voltage24 V
Alternator Supplied Amperage50 A
Engine Oil Capacity14.8 gal
Cooling System Fluid Capacity37.0 gal
Swing Drive Fluid Capacity6.4 gal

Engine

Engine specifications
Engine ModelSAA6D170E-3
Displacement1,413 in³
Power Measured @1,800 rpm
Net Power651.0 hp
Aspirationturbocharged aftercooled

Dimensions

Dimensions specifications
Ground Clearance40 in
Height - Top of Cab155 in
Length of Track on Ground198 in
Tail Swing Radius192 in
Width to Outside of Tracks181 in
Removal Counterweight Clearance71 in

Undercarriage

Undercarriage specifications
Ground Pressure20 psi
Track Gauge154 in
Number of Track Rollers per Side8
Max Travel Speed2.0 mph
Shoe Size28 in
Number of Shoes per Side48
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth312 in
Max Reach Along Ground539 in
Max Vertical Wall Digging Depth198 in
Max Loading Height333 in
Shipping Length of Unit583 in
Max Cutting Height512 in
Shipping Height of Unit247 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm
