Komatsu
Liugong
936E
Excavator
Specifications pending
1 / 5

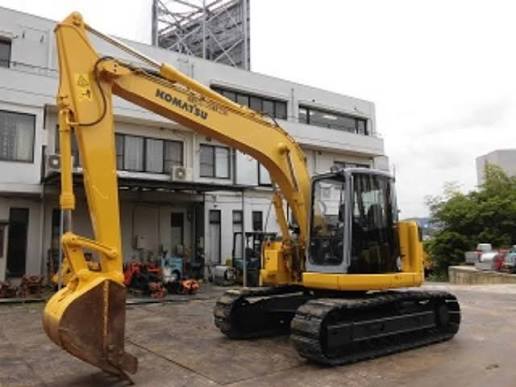

Image 1 of 5
Specifications
54 data points
Operating Specifications
| Fuel Capacity | 52.9 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 59.8 gal/min |
| Hydraulic System Fluid Capacity | 18.3 gal |
| Hydraulic System Relief Valve Pressure | 5,050 psi |
| Engine Oil Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 4.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal |
| Alternator Supplied Amperage | 25 A |
Engine
| Engine Model | S4D102E |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,200 rpm |
| Aspiration | Turbochaged |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 111 in |
| Length of Track on Ground | 109 in |
| Tail Swing Radius | 59 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 36 in |
| Digging Depth | 228 in |
| Digging Reach | 228 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 42 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 24,729 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 198 in |
|---|---|
| Max Reach Along Ground | 305 in |
| Max Loading Height | 260 in |
| Max Vertical Wall Digging Depth | 176 in |
| Max Cutting Height | 353 in |
| Shipping Length of Unit | 284 in |
| Shipping Height of Unit | 111 in |
Bucket
| Reference Bucket Capacity | 0.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 214 in |
|---|---|
| Max Vertical Wall Digging Depth | 192 in |
| Max Cutting Height | 365 in |
| Max Loading Height | 272 in |
| Max Reach Along Ground | 320 in |
| Shipping Length of Unit | 284 in |
| Shipping Height of Unit | 113 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 233 in |
|---|---|
| Max Cutting Height | 383 in |
| Max Loading Height | 289 in |
| Max Vertical Wall Digging Depth | 211 in |
| Max Reach Along Ground | 340 in |
| Shipping Length of Unit | 281 in |
| Shipping Height of Unit | 126 in |
