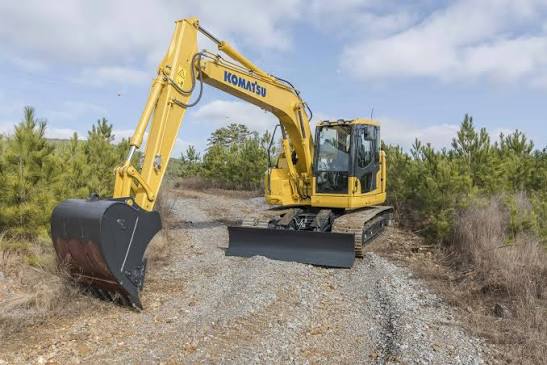

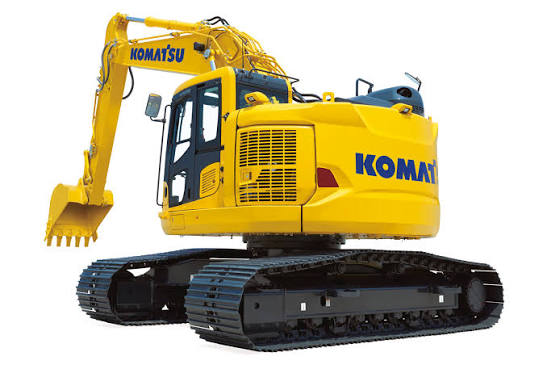

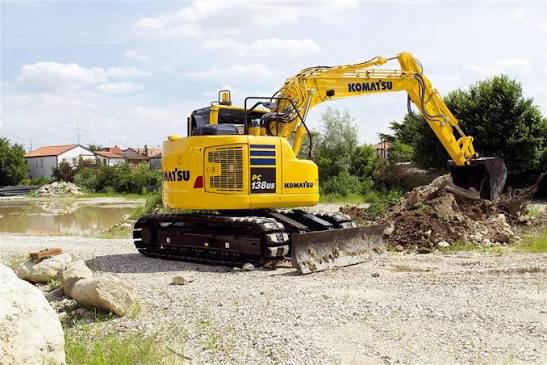

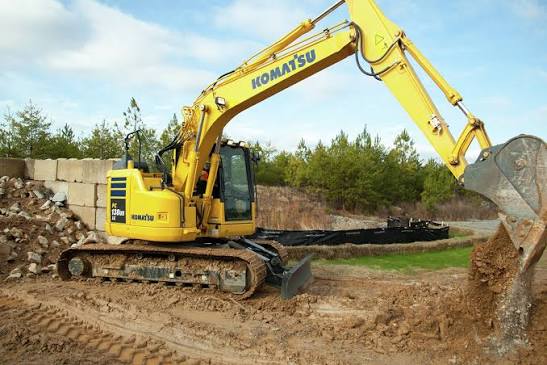

Komatsu
PC138US-11
- Operating Weight
- 30,600 lb
- Max Digging Depth
- 216 in
- Max Digging Depth
- 233 in
- Net Power
- 97.3 hp
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 30,600 lb |
|---|---|
| Fuel Capacity | 52.9 gal |
| Hydraulic Pump Flow Capacity | 64.0 gal/min |
| Hydraulic System Fluid Capacity | 18.3 gal |
| Engine Oil Capacity | 3.1 gal |
| Swing Drive Fluid Capacity | 0.7 gal |
Engine
| Engine Model | SAA4D95LE-7 |
|---|---|
| Displacement | 199 in³ |
| Power Measured @ | 2,050 rpm |
| Gross Power | 97.4 hp |
| Net Power | 97.3 hp |
| Aspiration | Turbocharged |
| Engine Make | Komatsu |
| Bore | 4 in |
| Stroke | 5 in |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 111 in |
| Length of Track on Ground | 143 in |
| Tail Swing Radius | 59 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Track Gauge | 79 in |
|---|---|
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 27,558 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 216 in |
|---|---|
| Max Reach Along Ground | 323 in |
| Max Loading Height | 270 in |
| Max Vertical Wall Digging Depth | 193 in |
| Max Cutting Height | 369 in |
| Shipping Length of Unit | 287 in |
| Shipping Height of Unit | 113 in |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 233 in |
|---|---|
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 383 in |
| Max Loading Height | 291 in |
| Max Reach Along Ground | 340 in |
| Shipping Length of Unit | 282 in |
| Shipping Height of Unit | 127 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 224 in |
|---|---|
| Max Cutting Height | 360 in |
| Max Loading Height | 267 in |
| Max Vertical Wall Digging Depth | 174 in |
| Max Reach Along Ground | 330 in |
| Shipping Length of Unit | 319 in |
