Komatsu

PC138USLC-8

Excavator

Max Digging Depth
216 in
Max Digging Depth
233 in
Net Power
92.0 hp
All excavators

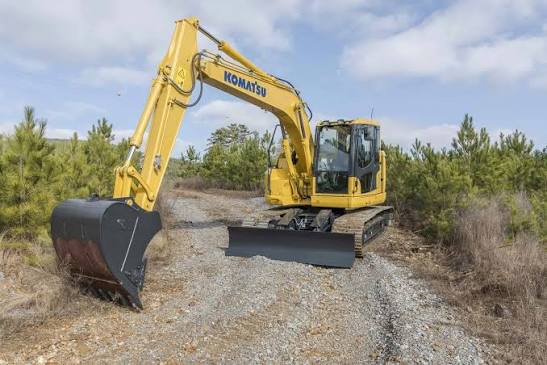

Komatsu PC138USLC-8 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Cooling System Fluid Capacity0.7 gal

Engine

Engine specifications
Engine ModelSAA4D95LE-5
Displacement199 in³
Gross Power97.0 hp
Net Power92.0 hp
AspirationTurbocharged and air-to-air aftercooled

Dimensions

Dimensions specifications
Height - Top of Cab111 in
Length of Track on Ground125 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side8
Max Travel Speed3.2 mph
Number of Shoes per Side46
Number of Carrier Rollers per Side2
Drawbar Pull2,810,112 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth216 in
Max Reach Along Ground322 in
Max Vertical Wall Digging Depth193 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth233 in
