Komatsu

PC1600-1

Mini Excavator

Operating Weight
352,740 lb
Max Digging Depth
395 in
Gross Power
808.7 hp
Net Power
808.0 hp
All mini excavators

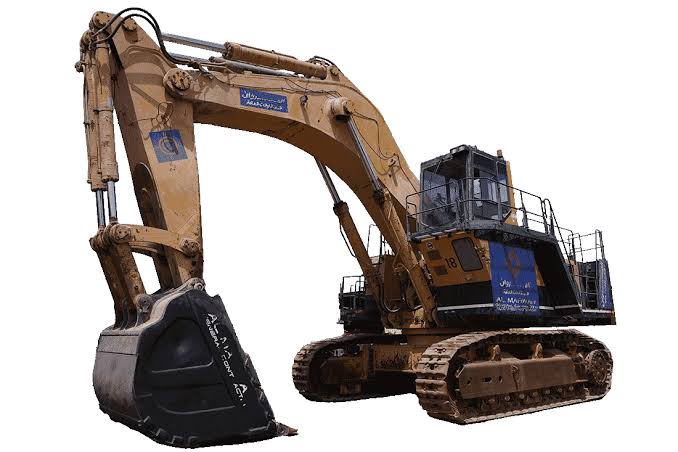

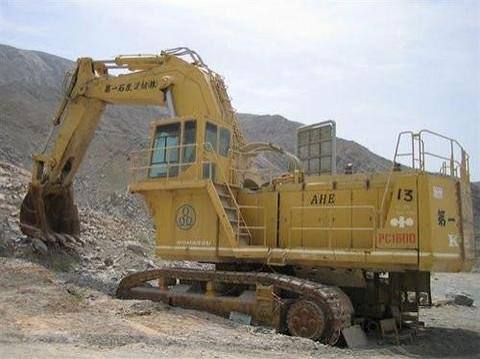

Komatsu PC1600-1 Mini Excavator
1 / 5
Image 1 of 5
Image: kenkenkikki.jp

Specifications

69 data points

Operating Specifications

Operating Specifications specifications
Operating Weight352,740 lb
Fuel Capacity541.5 gal
Hydraulic Pump Flow Capacity691.3 gal/min
Hydraulic System Fluid Capacity396.3 gal
Hydraulic System Relief Valve Pressure4,550 psi
Swing Speed5 rpm

Engine

Engine specifications
Power Measured @1,800 rpm
Gross Power808.7 hp
Net Power808.0 hp
Number of Cylinders6
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab246 in
Length of Track on Ground228 in
Width to Outside of Tracks204 in
Removal Counterweight Clearance80 in
Upper Structure Ground Clearance80 in
Length of Tracks294 in

Undercarriage

Undercarriage specifications
Ground Pressure22 psi
Track Gauge172 in
Max Travel Speed1.7 mph
Shoe Size32 in
Loading Shovel Operating Weight357,149 lb
Loading Shovel Shoe Width32 in
Loading Shovel Ground Pressure22 psi

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth395 in
Max Reach Along Ground652 in
Max Vertical Wall Digging Depth219 in
Max Loading Height344 in
Shipping Length of Unit681 in
Max Cutting Height534 in
Shipping Height of Unit280 in

Bucket

Bucket specifications
Reference Bucket Capacity11.20 yd³
Maximum Bucket Capacity14.40 yd³
Minimum Bucket Capacity5.70 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed5 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth468 in
Max Cutting Height644 in
Max Loading Height410 in
Max Vertical Wall Digging Depth308 in
Max Reach Along Ground743 in
Shipping Height of Unit296 in
Shipping Length of Unit761 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth424 in
Max Cutting Height546 in
Max Loading Height356 in
Max Reach Along Ground681 in
Max Vertical Wall Digging Depth247 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth470 in
Max Cutting Height633 in
Max Loading Height396 in
Max Reach Along Ground728 in
Max Vertical Wall Dig Depth265 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth504 in
Max Cutting Height655 in
Max Reach Along Ground778 in
Max Loading Height425 in
Max Vertical Wall Dig Depth361 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth541 in
Max Cutting Height677 in
Max Reach Along Ground814 in
Max Loading Height452 in
Max Vertical Wall Dig Depth395 in

Loading Shovel

Loading Shovel specifications
Max Dig Depth159 in
Max Dig Reach519 in
Max Cutting Height556 in
Max Dump Height403 in
Height to Top of Boom - shovel267 in
Overall Length - shovel522 in
