Komatsu

PC160LC-7

Excavator

Max Digging Depth
235 in
Max Digging Depth
246 in
All excavators

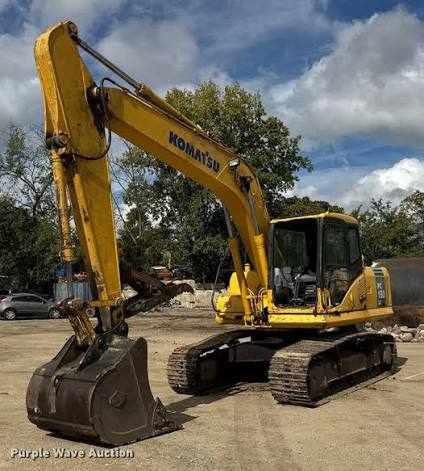

Komatsu PC160LC-7 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity74.0 gal
Hydraulic Pump Flow Capacity82.5 gal/min
Hydraulic System Fluid Capacity32.0 gal
Hydraulic System Relief Valve Pressure5,512 psi
Engine Oil Capacity4.2 gal
Cooling System Fluid Capacity4.9 gal
Swing Drive Fluid Capacity1.2 gal

Engine

Engine specifications
Engine ModelSAA4D107E-1
Power Measured @2,200 rpm
Gross Power121.0 hp
AspirationTurbocharged aftercooled

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab118 in
Length of Track on Ground126 in
Tail Swing Radius96 in
Removal Counterweight Clearance42 in
Digging Depth240 in
Digging Reach240 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Shoe Size20 in
Number of Shoes per Side44
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth235 in
Max Reach Along Ground347 in
Max Loading Height251 in
Shipping Length of Unit339 in
Shipping Height of Unit119 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity1.29 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth246 in
Max Vertical Wall Digging Depth210 in
