Komatsu
Liugong
936E
Excavator
Specifications pending
1 / 5

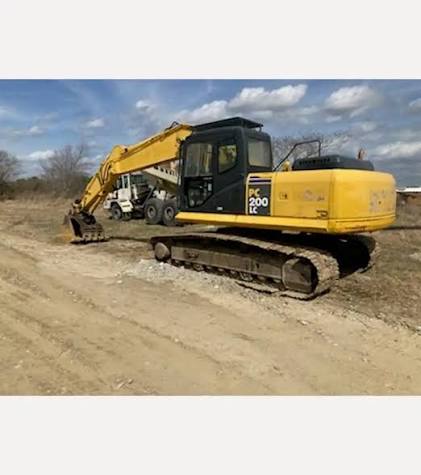

Image 1 of 5
Specifications
54 data points
Operating Specifications
| Hydraulic Pump Flow Capacity | 113.0 gal/min |
|---|
Engine
| Engine Model | SAA6D102E-2 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 150.0 hp |
| Net Power | 143.0 hp |
| Aspiration | Turbocharged |
| Engine Make | Komatsu |
| Bore | 4 in |
| Stroke | 5 in |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 144 in |
| Tail Swing Radius | 109 in |
| Width to Outside of Tracks | 126 in |
| Digging Depth | 252 in |
| Digging Reach | 252 in |
| Track Gauge | 95 in |
| Cab height | 83 in |
| Track length | 175 in |
| Cab width | 98 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 28 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 40,016 lb |
Fluid Capacities
| Fuel Tank | 105.7 gal |
|---|---|
| Engine Oil | 6.4 gal |
| Swing drive | 1.8 gal |
| Final Drive | 1.2 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 240 in |
|---|---|
| Max Vertical Wall Digging Depth | 215 in |
| Minimum swing radius | 122 in |
| Max Digging Reach | 370 in |
| Max.Dumping Height | 272 in |
| Max Digging Reach on Ground | 362 in |
| Max Digging Height | 386 in |
| Arm Crowd Force - SAE | 27,876 lb |
| Arm Crowd Force-ISO | 28,551 lb |
| Maximum vertical wallcut depth | 215 in |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 261 in |
|---|---|
| Max Vertical Wall Digging Depth | 236 in |
| Minimum swing radius | 120 in |
| Max Digging Reach | 389 in |
| Max.Dumping Height | 281 in |
| Max Digging Reach on Ground | 383 in |
| Bucket Digging Force - SAE | 31,024 lb |
| Bucket Digging Force - ISO | 33,497 lb |
| Max. digging height | 395 in |
| Arm Crowd Force-SAE | 22,706 lb |
| Arm Crowd Force-ISO | 24,279 lb |
