Komatsu

PC210LC-10

Excavator

Max Digging Depth
454 in
Net Power
158.0 hp
All excavators

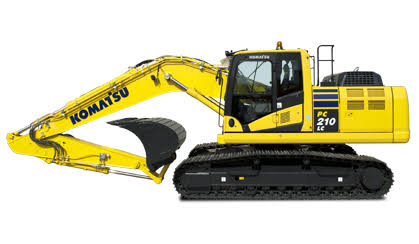

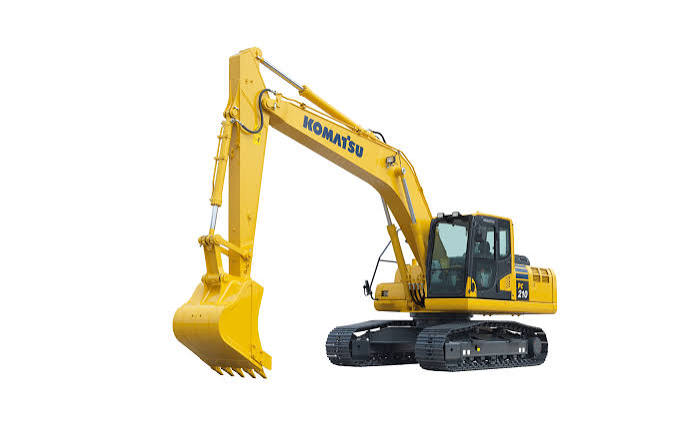

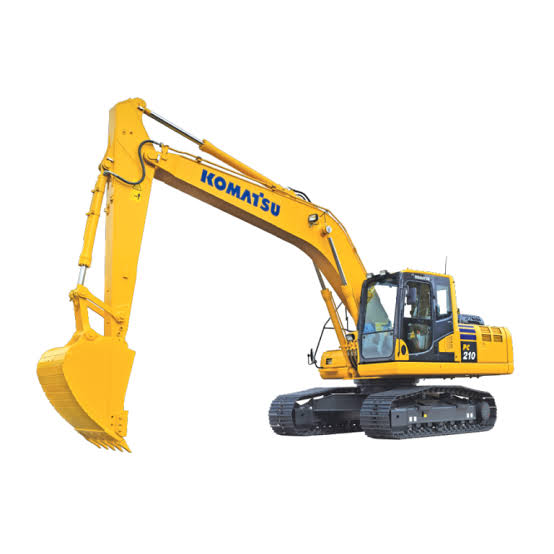

Komatsu PC210LC-10 Excavator
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity105.7 gal
Hydraulic System Fluid Capacity34.9 gal
Engine Oil Capacity6.1 gal
Cooling System Fluid Capacity8.1 gal
Swing Drive Fluid Capacity1.7 gal

Engine

Engine specifications
Engine ModelSAA6D10E-2
Displacement408 in³
Power Measured @2,000 rpm
Gross Power165.0 hp
Net Power158.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab120 in
Length of Track on Ground144 in
Tail Swing Radius117 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Max Travel Speed3.4 mph
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull45,349 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth454 in
Max Reach Along Ground596 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
