Komatsu

PC210LC-6

Excavator

Operating Weight
51,169 lb
Max Digging Depth
261 in
Max Digging Depth
219 in
Net Power
144.9 hp
All excavators

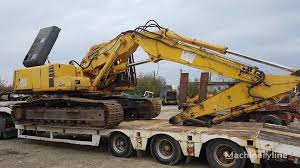

Komatsu PC210LC-6 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,169 lb
Fuel Capacity81.9 gal
Hydraulic Pump Flow Capacity108.9 gal/min
Hydraulic System Fluid Capacity43.9 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelS6D102
Displacement359 in³
Power Measured @2,200 rpm
Net Power144.9 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab113 in
Length of Track on Ground144 in
Tail Swing Radius109 in
Width to Outside of Tracks122 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge95 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth261 in
Max Reach Along Ground383 in
Max Loading Height256 in
Max Vertical Wall Digging Depth236 in
Max Cutting Height367 in
Shipping Length of Unit372 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity1.29 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth219 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height350 in
Max Loading Height239 in
Max Reach Along Ground344 in
Shipping Length of Unit371 in
Shipping Height of Unit113 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth240 in
Max Cutting Height356 in
Max Loading Height247 in
Max Vertical Wall Digging Depth210 in
Max Reach Along Ground364 in
Shipping Length of Unit374 in
Shipping Height of Unit124 in
