Komatsu

PC210LC-8

Excavator

Operating Weight
52,360 lb
Max Digging Depth
212 in
Max Digging Depth
240 in
Net Power
147.6 hp
All excavators

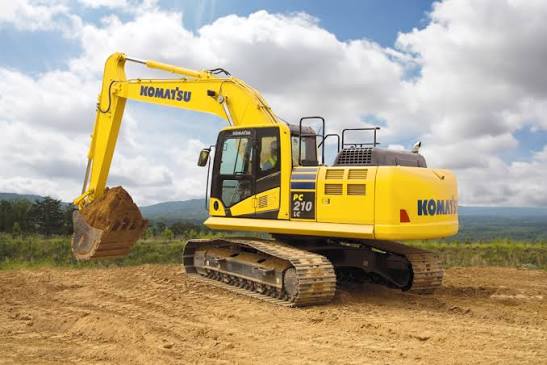

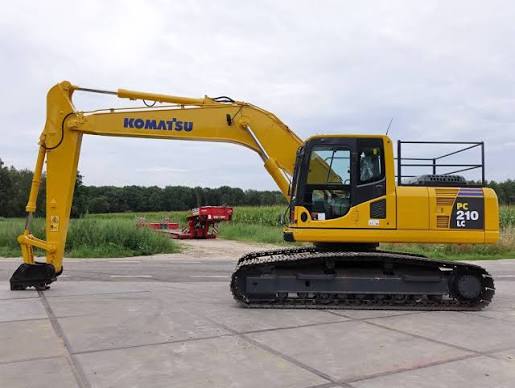

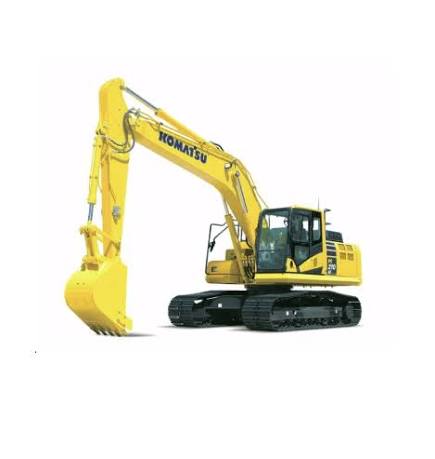

Komatsu PC210LC-8 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

71 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,360 lb
Fuel Capacity85.9 gal
Hydraulic Pump Flow Capacity115.8 gal/min
Hydraulic System Fluid Capacity36.2 gal
Engine Oil Capacity6.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.8 gal

Engine

Engine specifications
Engine ModelSAA6D107E-1
Displacement408 in³
Power Measured @2,000 rpm
Gross Power155.6 hp
Net Power147.6 hp
AspirationTurbocharged
Engine MakeKomatsu
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab120 in
Length of Track on Ground175 in
Tail Swing Radius110 in
Width to Outside of Tracks118 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull40 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth212 in
Max Reach Along Ground342 in
Max Loading Height261 in
Max Vertical Wall Digging Depth182 in
Max Cutting Height374 in
Shipping Length of Unit376 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Maximum Bucket Capacity2.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth240 in
Max Vertical Wall Digging Depth215 in
Max Cutting Height386 in
Max Loading Height272 in
Max Reach Along Ground362 in
Shipping Length of Unit377 in
Shipping Height of Unit126 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth261 in
Max Cutting Height395 in
Max Loading Height281 in
Max Vertical Wall Digging Depth236 in
Max Reach Along Ground383 in
Shipping Length of Unit374 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth202 in
Max Cutting Height404 in
Max Reach Along Ground343 in
Max Loading Height288 in
Max Vertical Wall Dig Depth159 in
Shipping Length of Unit376 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth226 in
Max Reach Along Ground365 in
Max Cutting Height420 in
Max Loading Height304 in
Max Vertical Wall Dig Depth187 in
Shipping Height of Unit122 in
Shipping Length of Unit372 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth245 in
Max Reach Along Ground384 in
Max Cutting Height435 in
Max Loading Height319 in
Max Vertical Wall Dig Depth207 in
Shipping Length of Unit371 in
Shipping Height of Unit120 in
