Komatsu
Liugong
936E
Excavator
Specifications pending
1 / 5

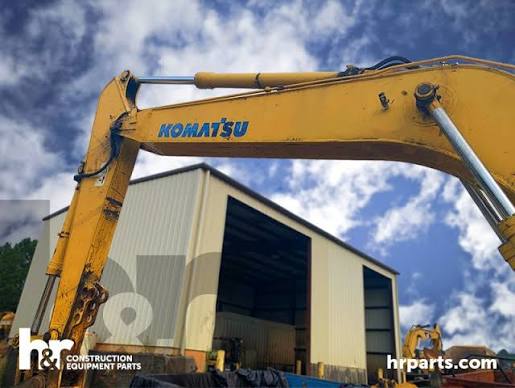

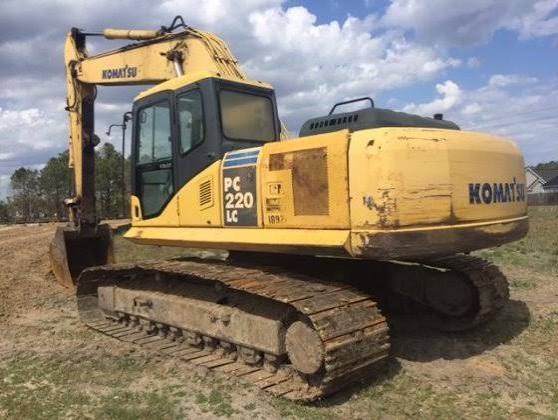

Image 1 of 5
Specifications
64 data points
Operating Specifications
| Hydraulic Pump Flow Capacity | 116.0 gal/min |
|---|
Engine
| Engine Model | SAA6D102E-2 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 167.7 hp |
| Aspiration | Turbocharged |
| Engine Make | Komatsu |
| Bore | 4 in |
| Stroke | 5 in |
| Max Digging Reach | 401 in |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 152 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 130 in |
| Removal Counterweight Clearance | 44 in |
| Digging Depth | 288 in |
| Digging Reach | 288 in |
| Track Gauge | 102 in |
| Track length | 183 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Number of Track Rollers per Side | 10 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 45,412 lb |
Fluid Capacities
| Fuel Tank | 105.7 gal |
|---|---|
| Engine Oil | 6.4 gal |
| Swing drive | 1.8 gal |
| Final Drive | 1.2 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 230 in |
|---|---|
| Max Vertical Wall Digging Depth | 187 in |
| Minimum swing radius | 130 in |
| Max Digging Reach | 366 in |
| Max.Dumping Height | 265 in |
| Max Digging Reach on Ground | 357 in |
| Bucket Digging Force - SAE | 39,566 lb |
| Max Digging Height | 381 in |
| Bucket Digging Force - ISO | 44,287 lb |
| Arm Crowd Force - SAE | 34,845 lb |
| Arm Crowd Force-ISO | 36,194 lb |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 250 in |
|---|---|
| Max Vertical Wall Digging Depth | 203 in |
| Max Reach Along Ground | 374 in |
| Minimum swing radius | 131 in |
| Max Digging Reach | 381 in |
| Max.Dumping Height | 271 in |
| Bucket Digging Force - SAE | 34,171 lb |
| Bucket Digging Force - ISO | 38,667 lb |
| Max. digging height | 386 in |
| Arm Crowd Force-SAE | 31,923 lb |
| Arm Crowd Force-ISO | 33,272 lb |
Boom/Stick Excavator Option 3
| Max Digging Depth | 274 in |
|---|---|
| Max Vertical Wall Digging Depth | 238 in |
| Max Reach Along Ground | 395 in |
| Minimum swing radius | 136 in |
| Max.Dumping Height | 277 in |
| Bucket Digging Force - SAE | 34,171 lb |
| Bucket Digging Force - ISO | 38,667 lb |
| Arm Crowd Force-SAE | 26,752 lb |
| Max. digging height | 395 in |
| Arm Crowd Force-ISO | 29,000 lb |
