Komatsu

PC270LC-6

Excavator

Operating Weight
63,603 lb
Max Digging Depth
233 in
Max Digging Depth
254 in
Net Power
171.7 hp
All excavators

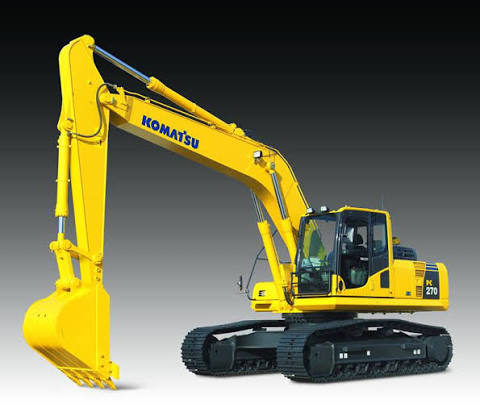

Komatsu PC270LC-6 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight63,603 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity113.6 gal/min
Hydraulic System Fluid Capacity50.0 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelSA6D102
Displacement359 in³
Power Measured @2,200 rpm
Net Power171.7 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab120 in
Length of Track on Ground159 in
Tail Swing Radius113 in
Width to Outside of Tracks130 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge102 in
Max Travel Speed3.3 mph
Shoe Size28 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth233 in
Max Reach Along Ground370 in
Max Loading Height2,620 in
Max Vertical Wall Digging Depth211 in
Max Cutting Height370 in
Shipping Length of Unit388 in
Shipping Height of Unit151 in

Bucket

Bucket specifications
Reference Bucket Capacity1.70 yd³
Maximum Bucket Capacity2.11 yd³
Minimum Bucket Capacity0.99 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth254 in
Max Vertical Wall Digging Depth229 in
Max Cutting Height383 in
Max Loading Height269 in
Max Reach Along Ground391 in
Shipping Length of Unit385 in
Shipping Height of Unit127 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth272 in
Max Cutting Height389 in
Max Loading Height275 in
Max Vertical Wall Digging Depth248 in
Max Reach Along Ground407 in
Shipping Length of Unit385 in
Shipping Height of Unit128 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth300 in
Max Cutting Height410 in
Max Reach Along Ground439 in
Max Loading Height295 in
Max Vertical Wall Dig Depth257 in
